Beam safety railing

B+135 (GTIN 4250912303966)

Beam safety railing

Description

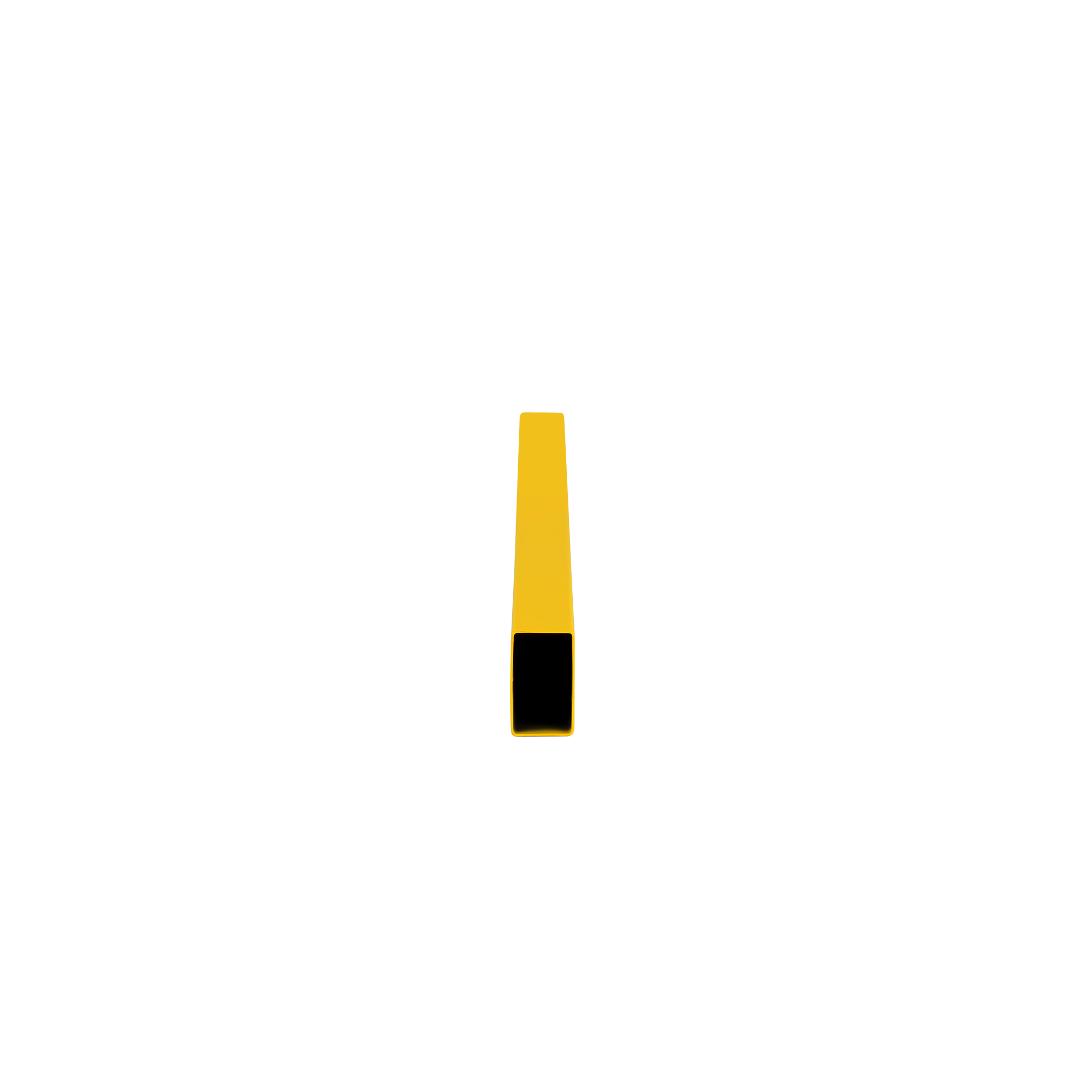

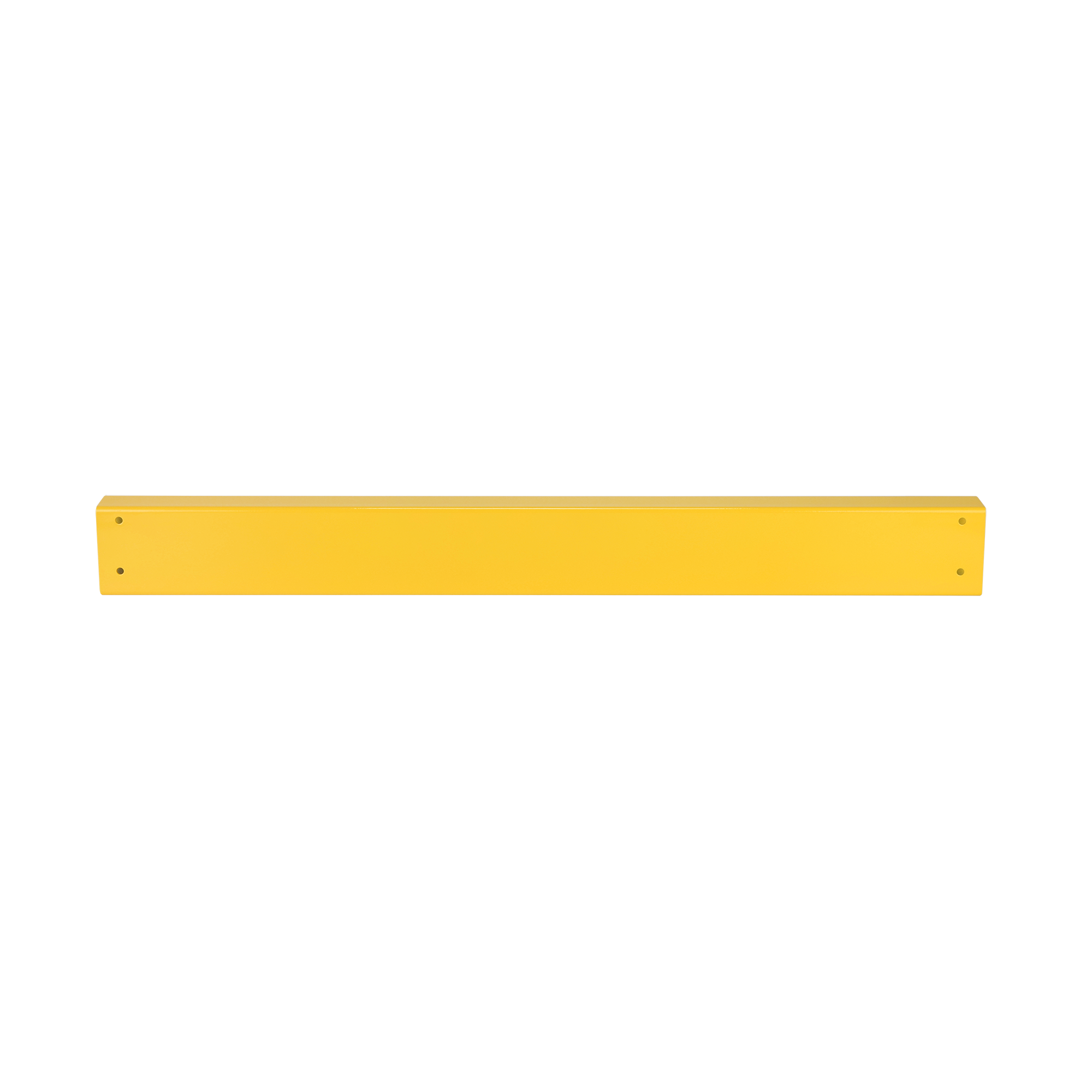

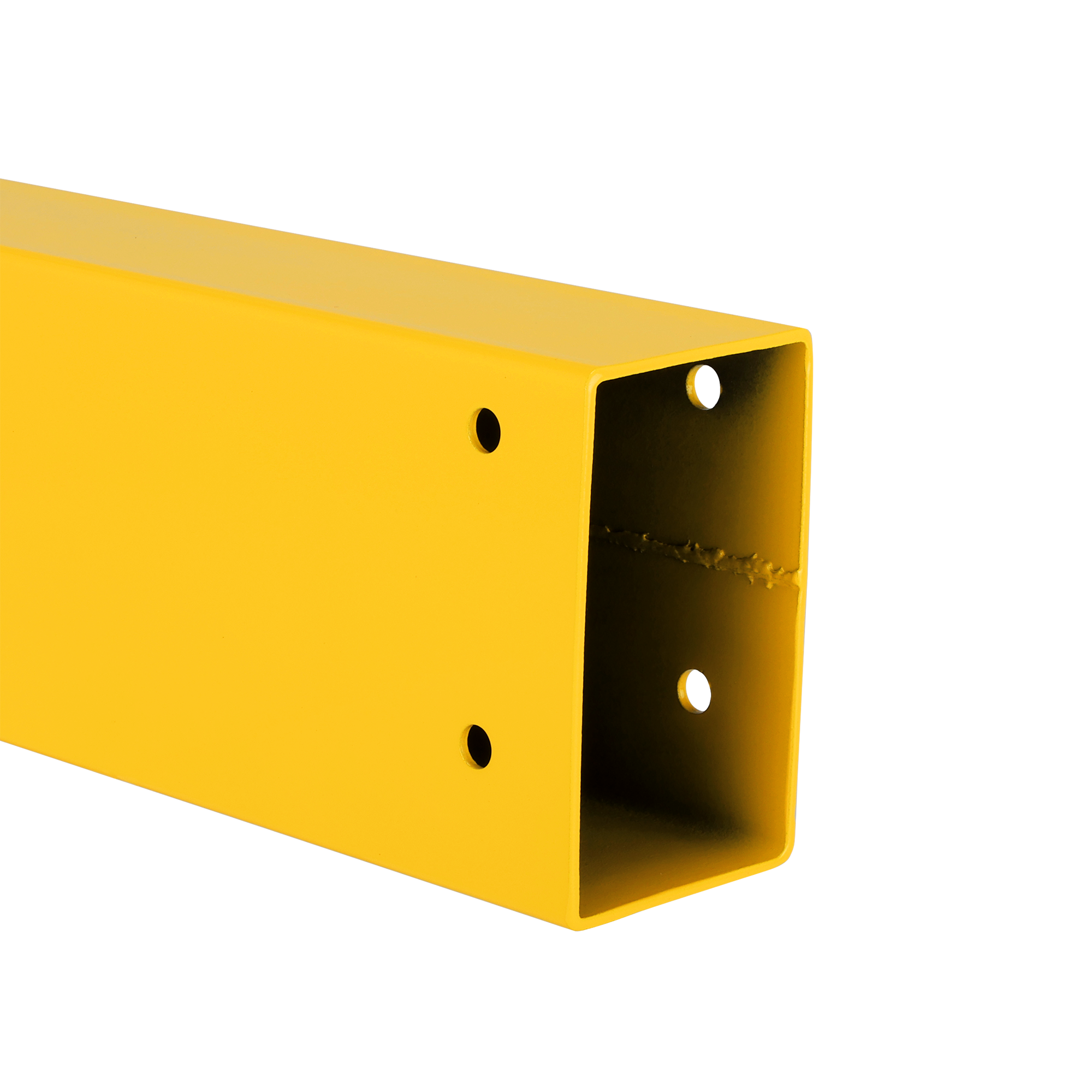

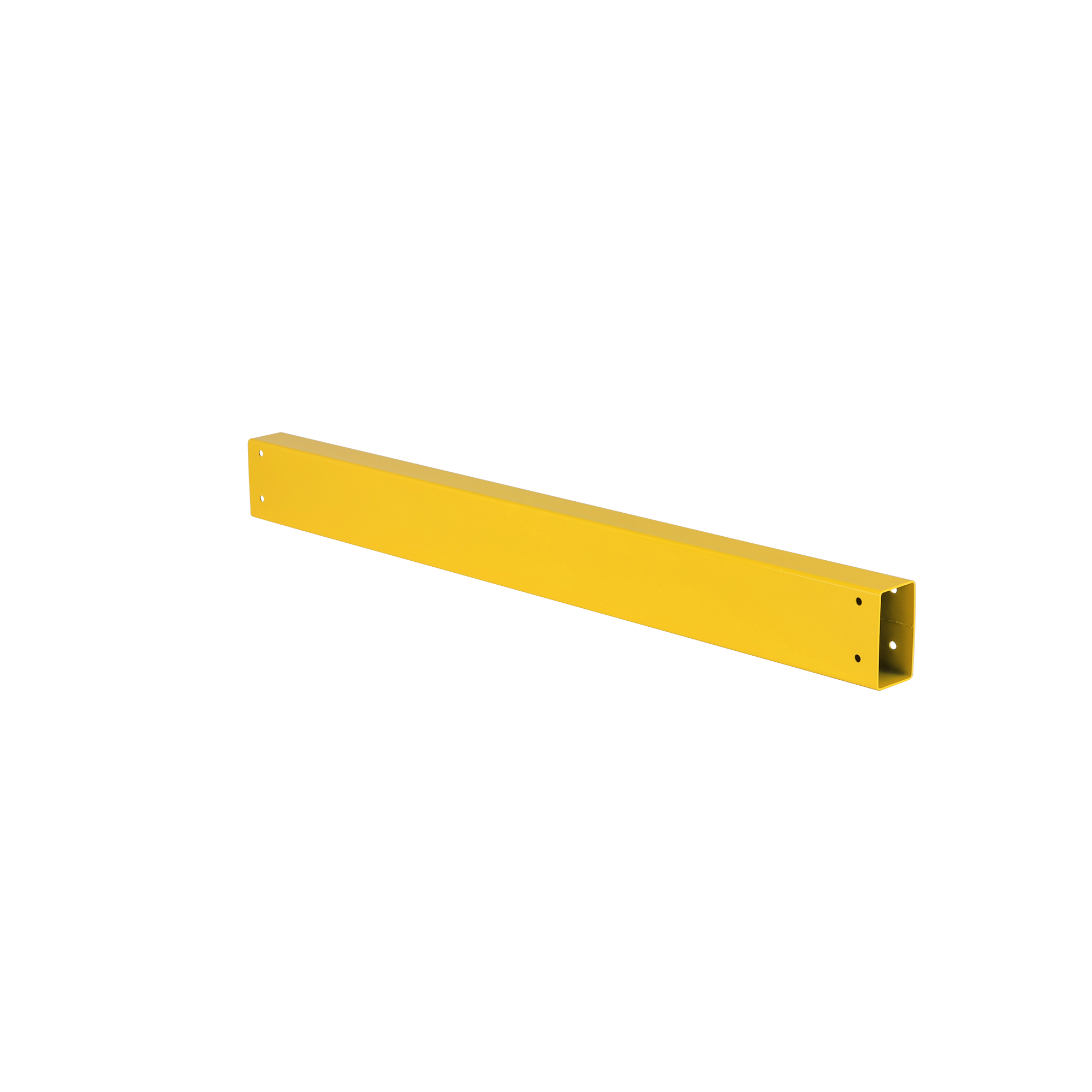

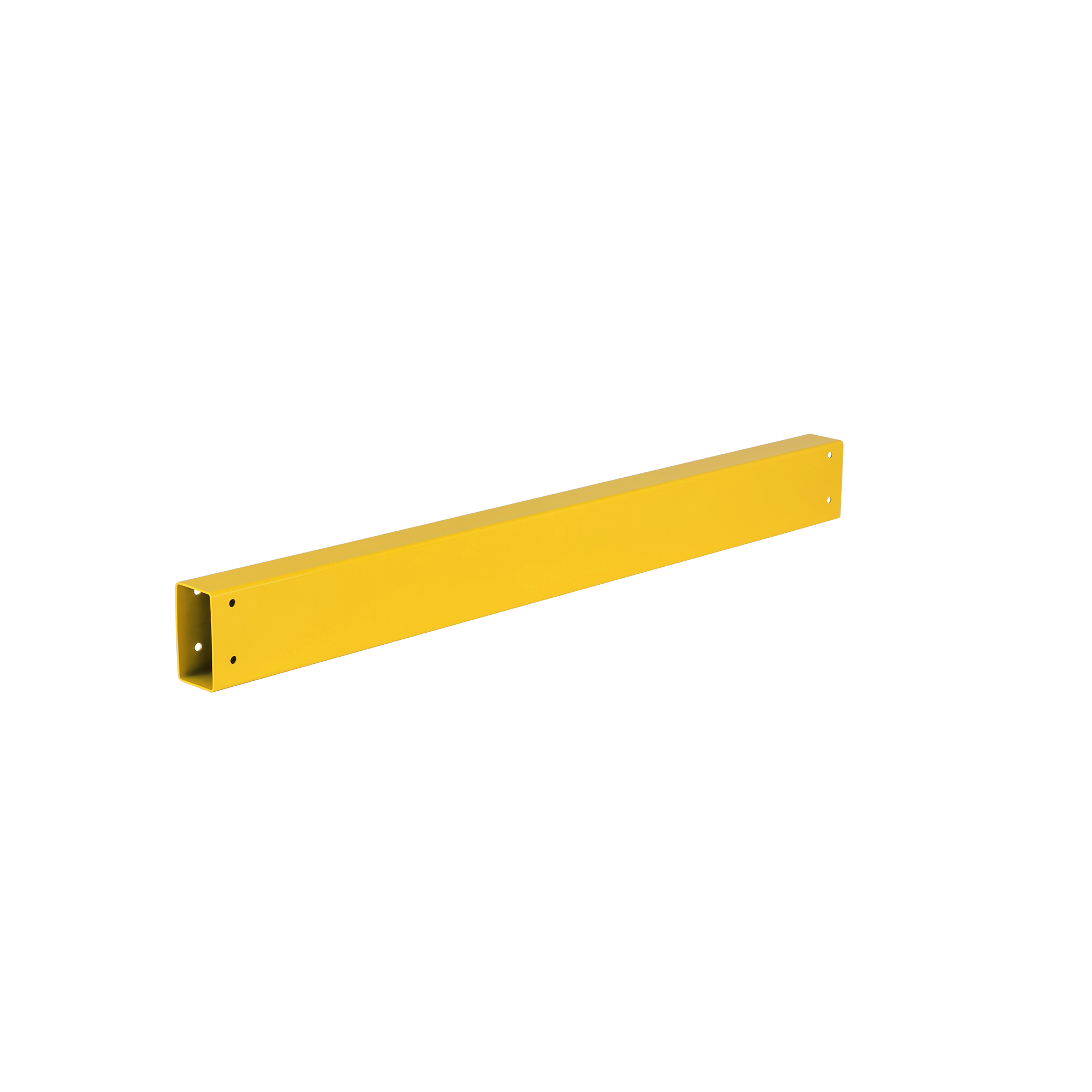

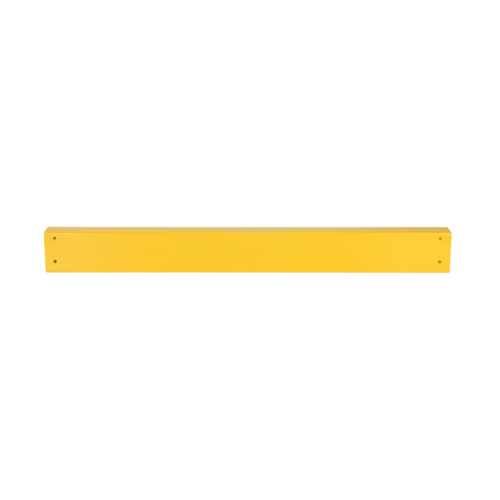

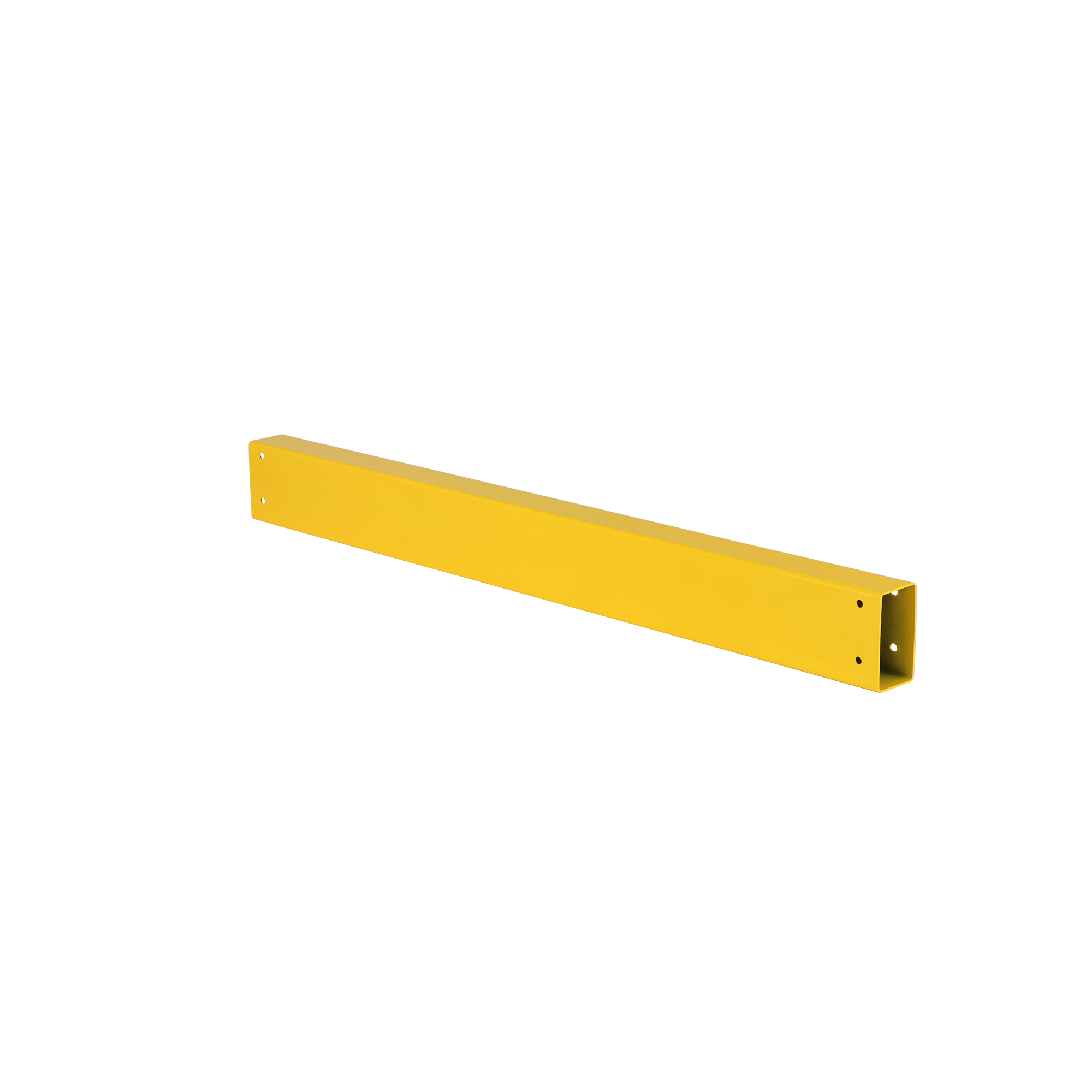

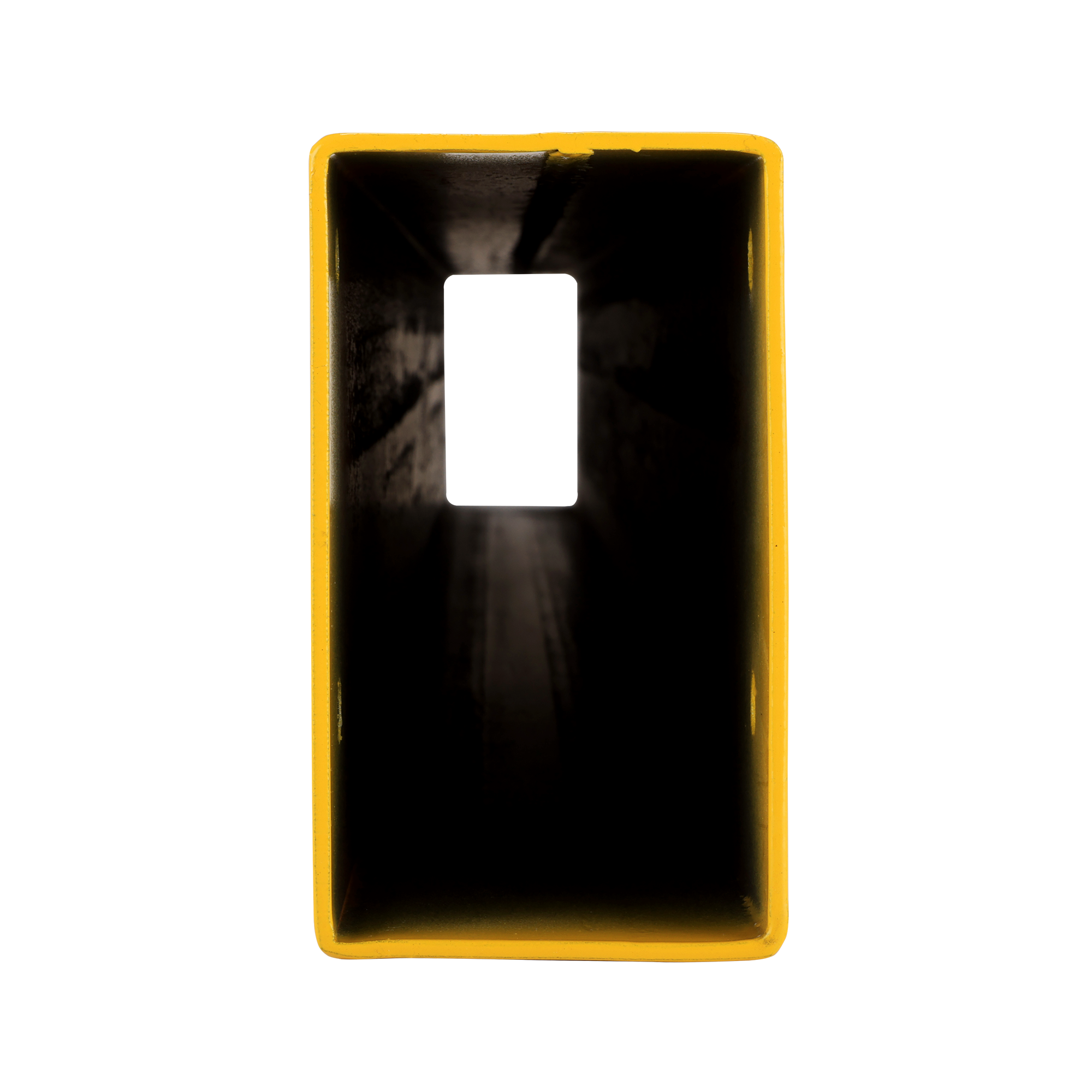

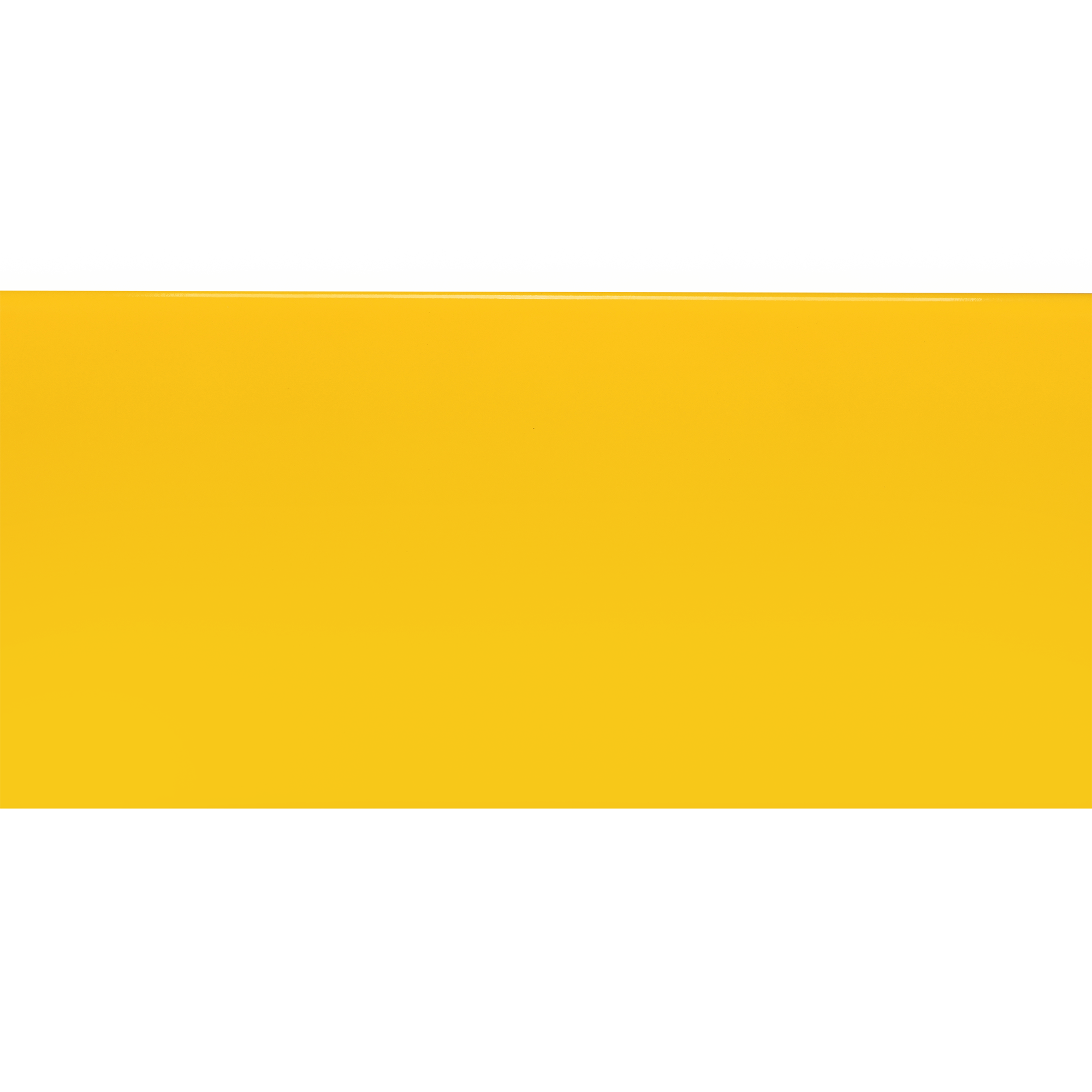

Beam 140 x 80 mm for safety railing, TÜV-certified ,width 1350 mm, galvanised and yellow powdercoated (similar to RAL 1023)

Material Steel
Material surface
  • Galvanized
  • powder coated
Material thickness (mm) 3
Colour Yellow
Shape Rectangular
Width (mm) 1350
Height (mm) 140
Depth/Length (mm) 80
Net weight (kg) 13,825
Gross weight (kg) 16,467
Area of application Indoor and outdoor use
Mounting Screw together
Delivery is Pre-assembled
Number of mounting holes 8
Fixing included Mounting material included
Warranty 1 year
Brand Crash Stop
Approval / Certification TÜV-certified (compliant with DGUV 108-007 / previously BGR 234)

Downloads

Data sheet English Product B+135

PDF, 21,68 KB

Download

Assembly guide Product B+135

PDF, 532,2 KB

Download

Certificate Product B+135

PDF, 1,31 MB

Download
Beam safety railing

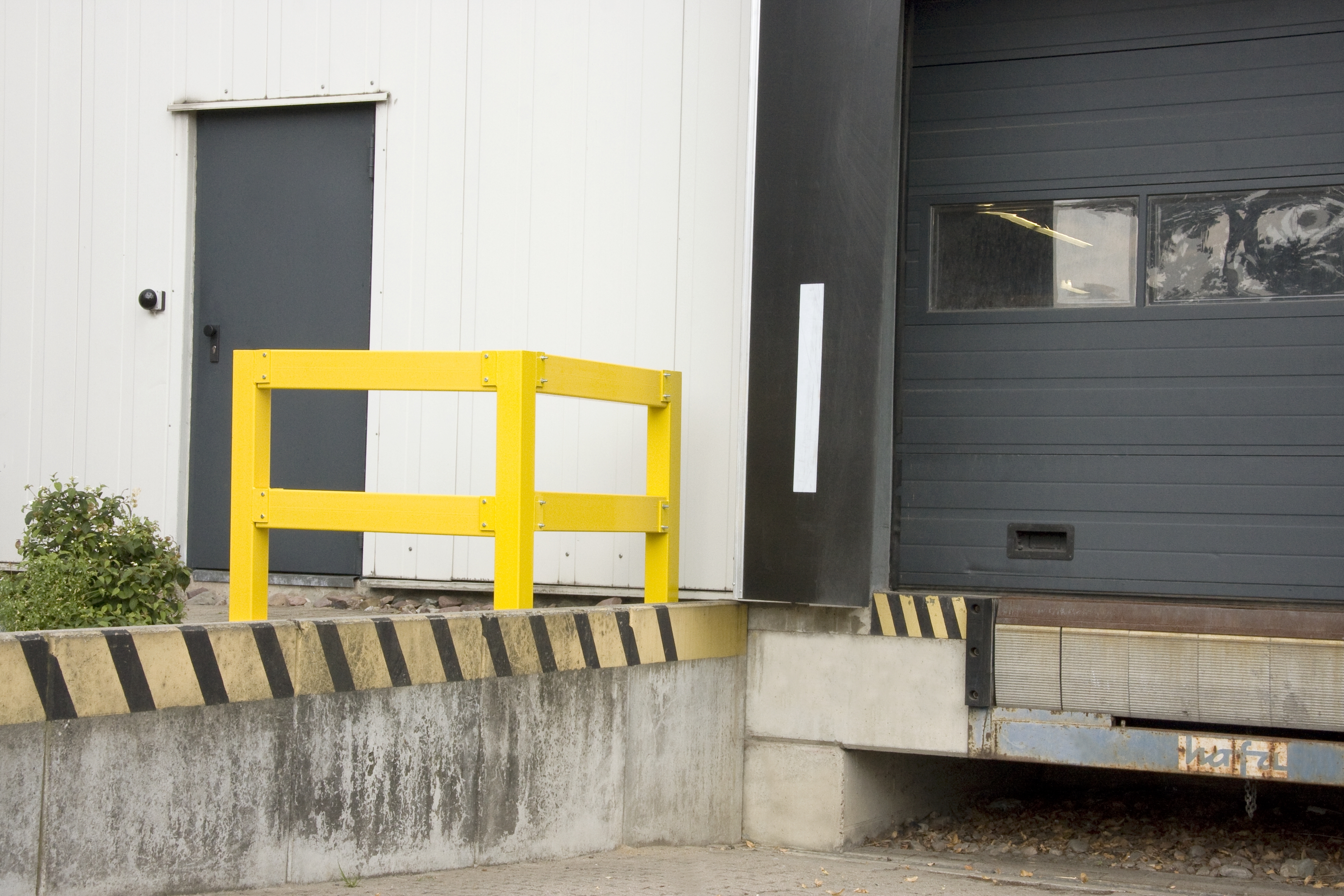

Impressions
