Acrylic mirror Bordeaux Ø60cm

ED-F 60 (GTIN 4250912310131)

Acrylic mirror Bordeaux Ø60cm

Description

Traffic mirror EUvex 60 cm, frame black-white, made of PMMA incl. fixing for posts 50 - 85 mm, metallized, acrylic mirror plate, 2 year warranty

Mirror plate (cm) 60 Ø
Observation distance (m) 9-15
Width (mm) 903
Height (mm) 903
Depth/Length (mm) 33
Material Acrylic
Material surface
  • UV-resistant
  • impact resistant to DIN ISO 179-1
Frame material High-impact Polystyrene (HIPS)
Frame colour Black - white
Area of application Indoor and outdoor use
Net weight (kg) 5,854
Gross weight (kg) 7,926
Mounting location Post
Mounting Screw together
Delivery is Partly disassembled
Number of mounting holes 4
Fixing included Universal bracket for posts (Ø50-85mm) Art.No.: 747.07-5
Warranty 1 year
Brand EUvex

Downloads

Datasheets

Data sheet English Product ED-F 60

PDF, 26,94 KB

Download
Instructions and Manuals

Assembly guide Product ED-F 60

PDF, 387,78 KB

Download
Acrylic mirror Bordeaux Ø60cm

Impressions

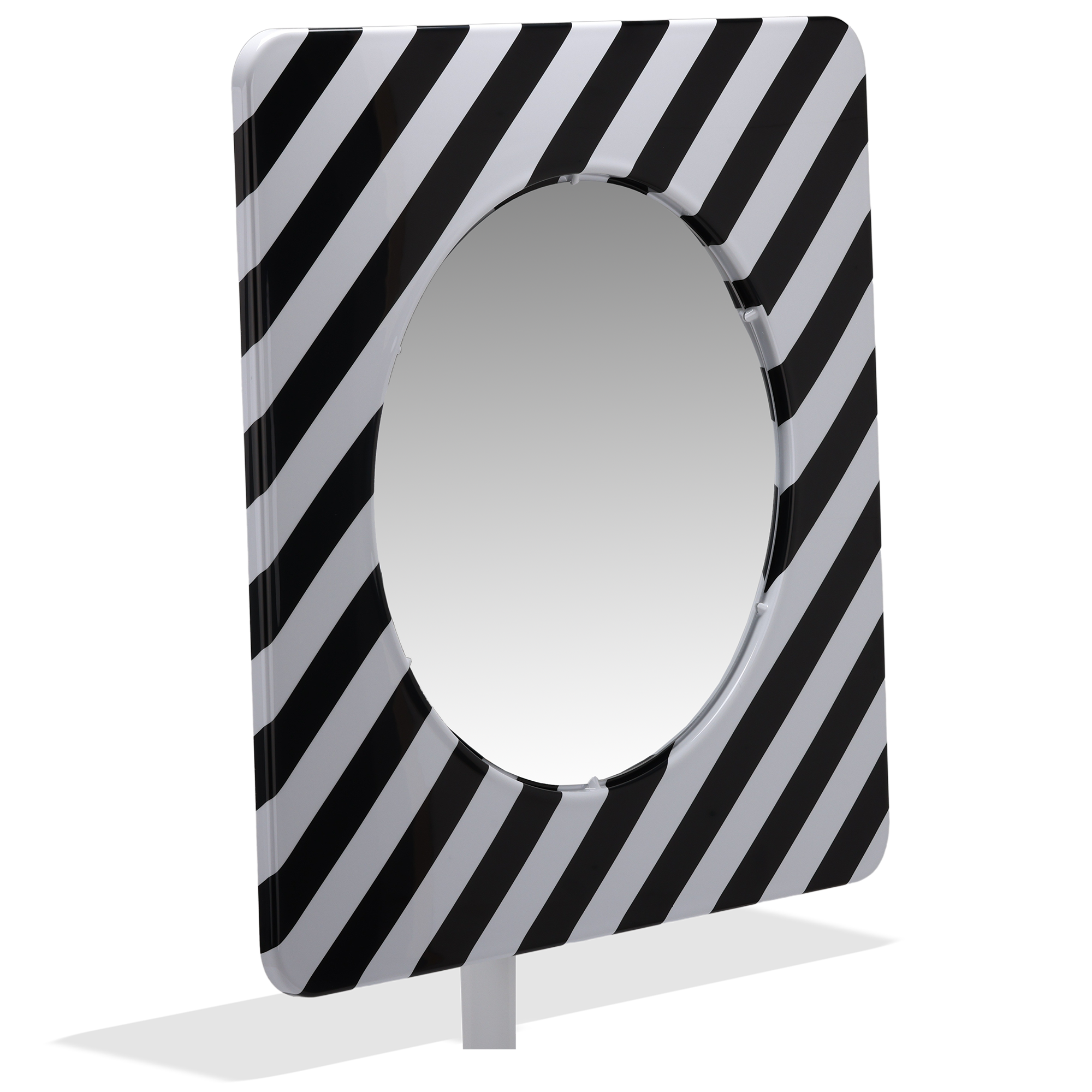

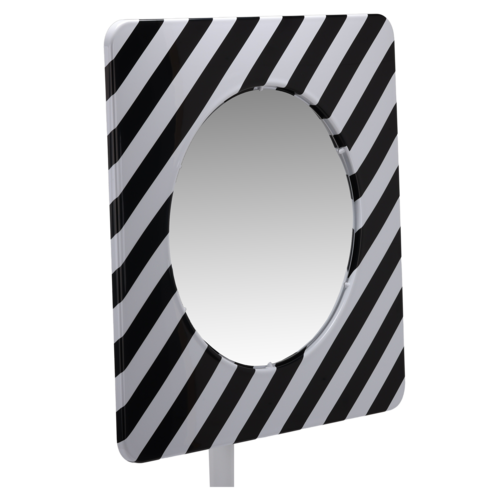

ED-F 60 / 45° front left view
ED-F 60 / 45° front left view

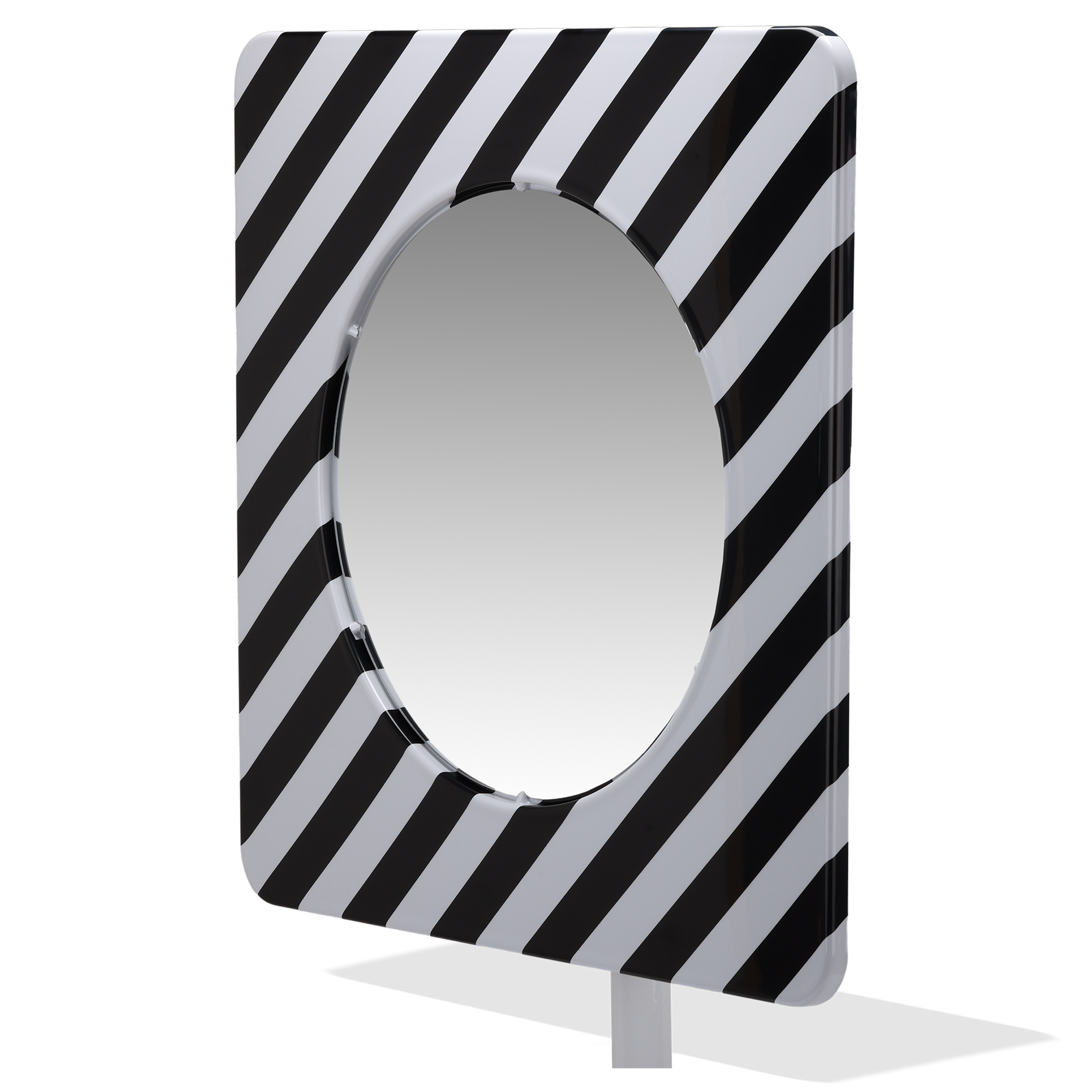

ED-F 60 / 45° front view right
ED-F 60 / 45° front view right

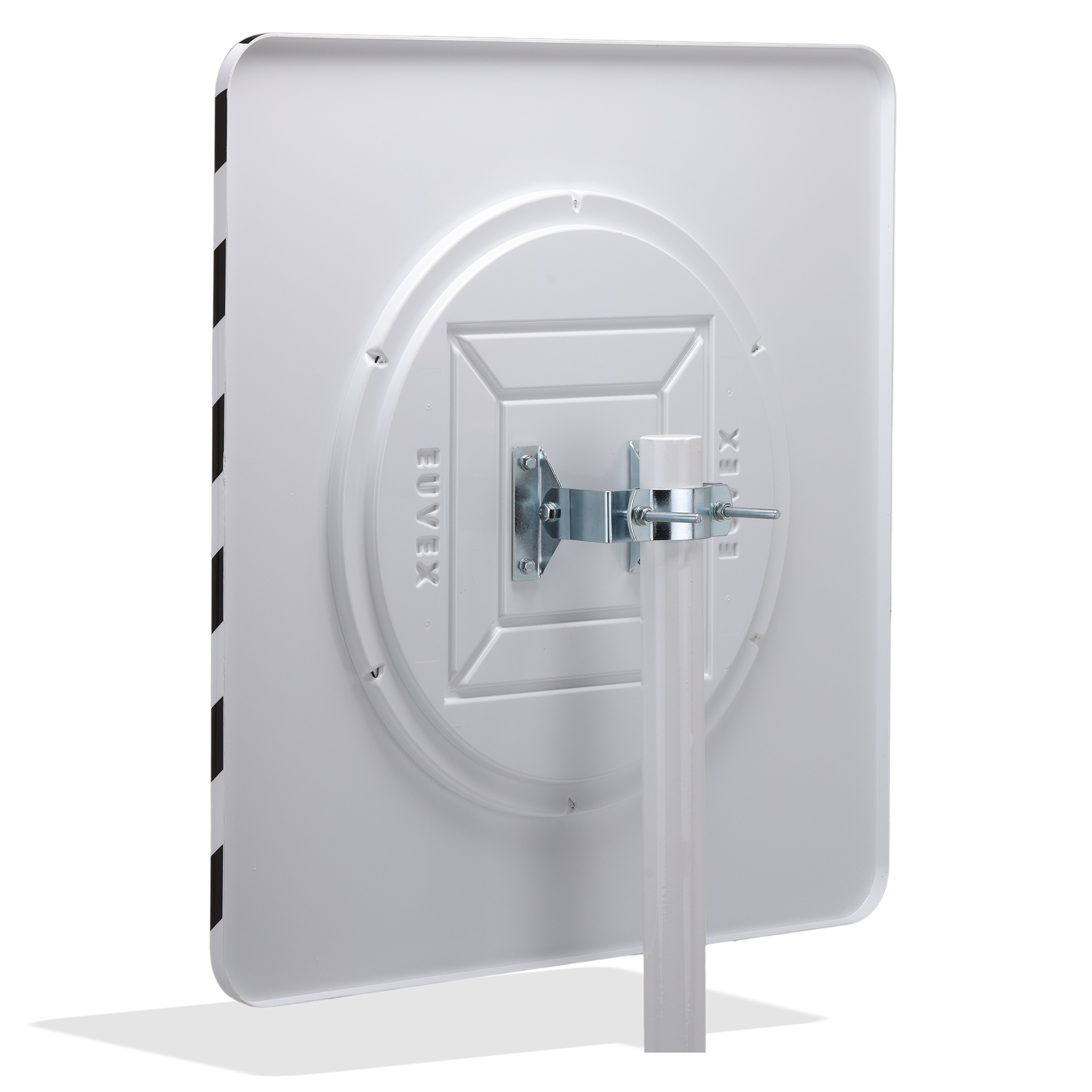

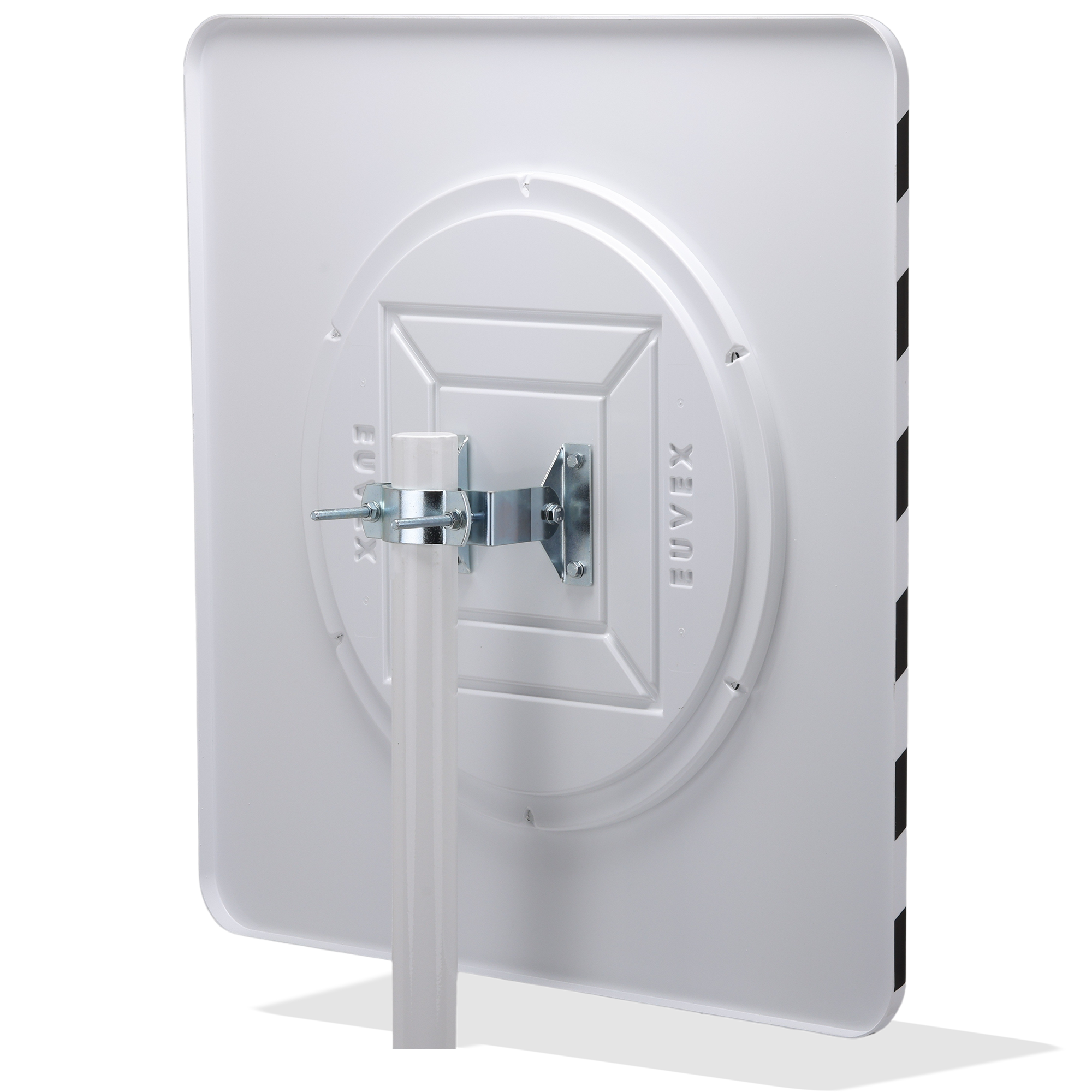

ED-F 60 / 45° rear left view
ED-F 60 / 45° rear left view
ED-F 60 / 45° rear right view
ED-F 60 / 45° rear right view

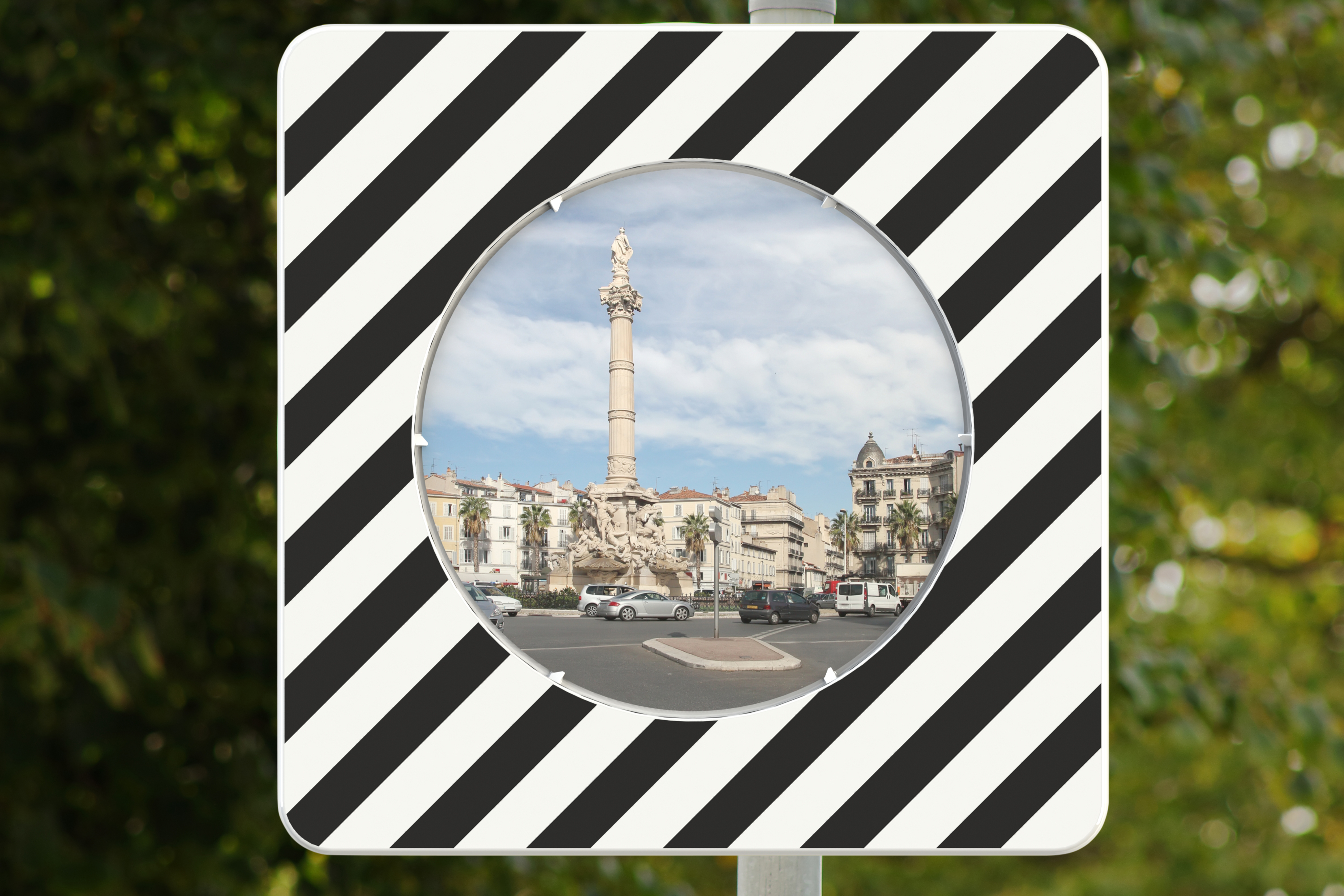

ED-F 60 / Application picture 1
ED-F 60 / Application picture 1

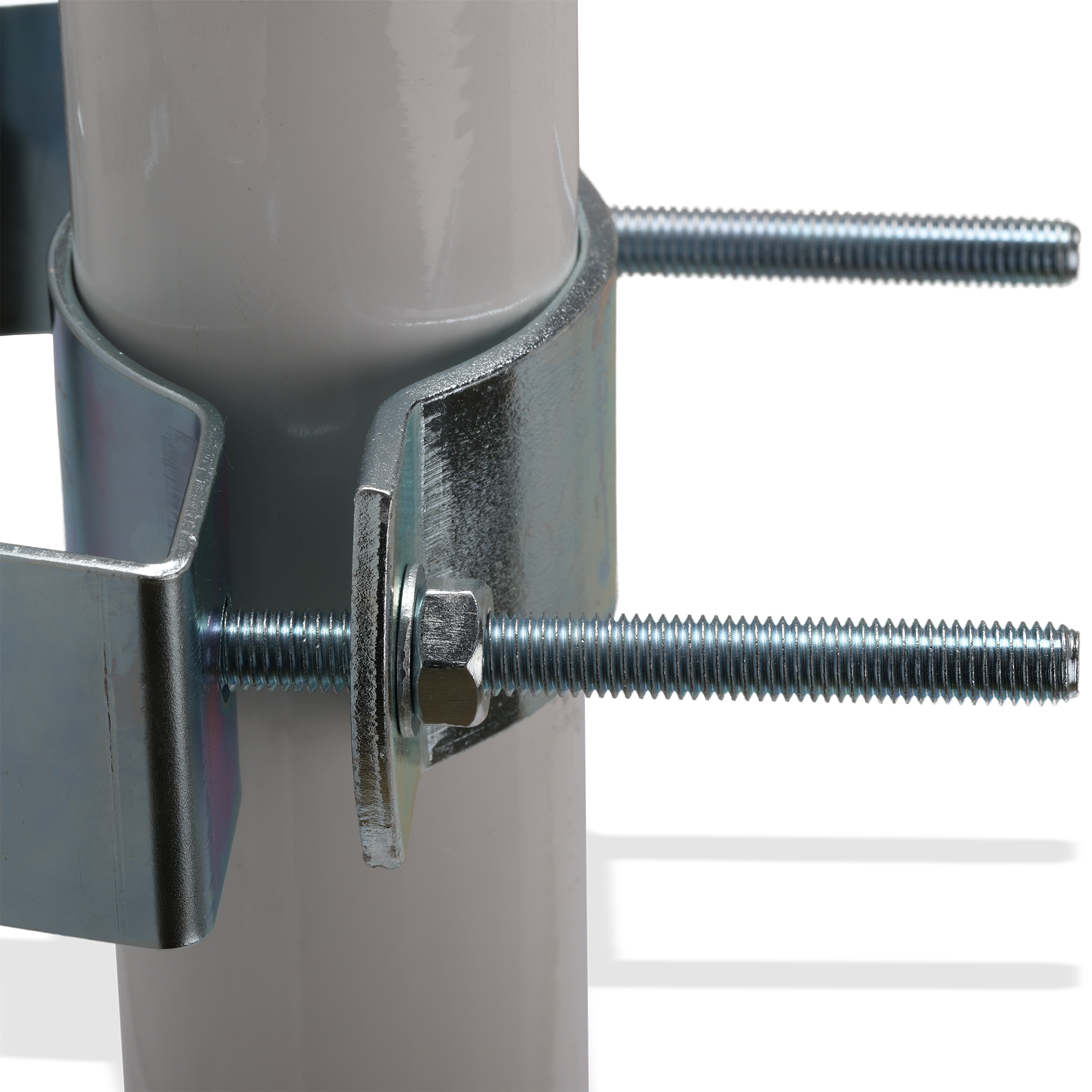

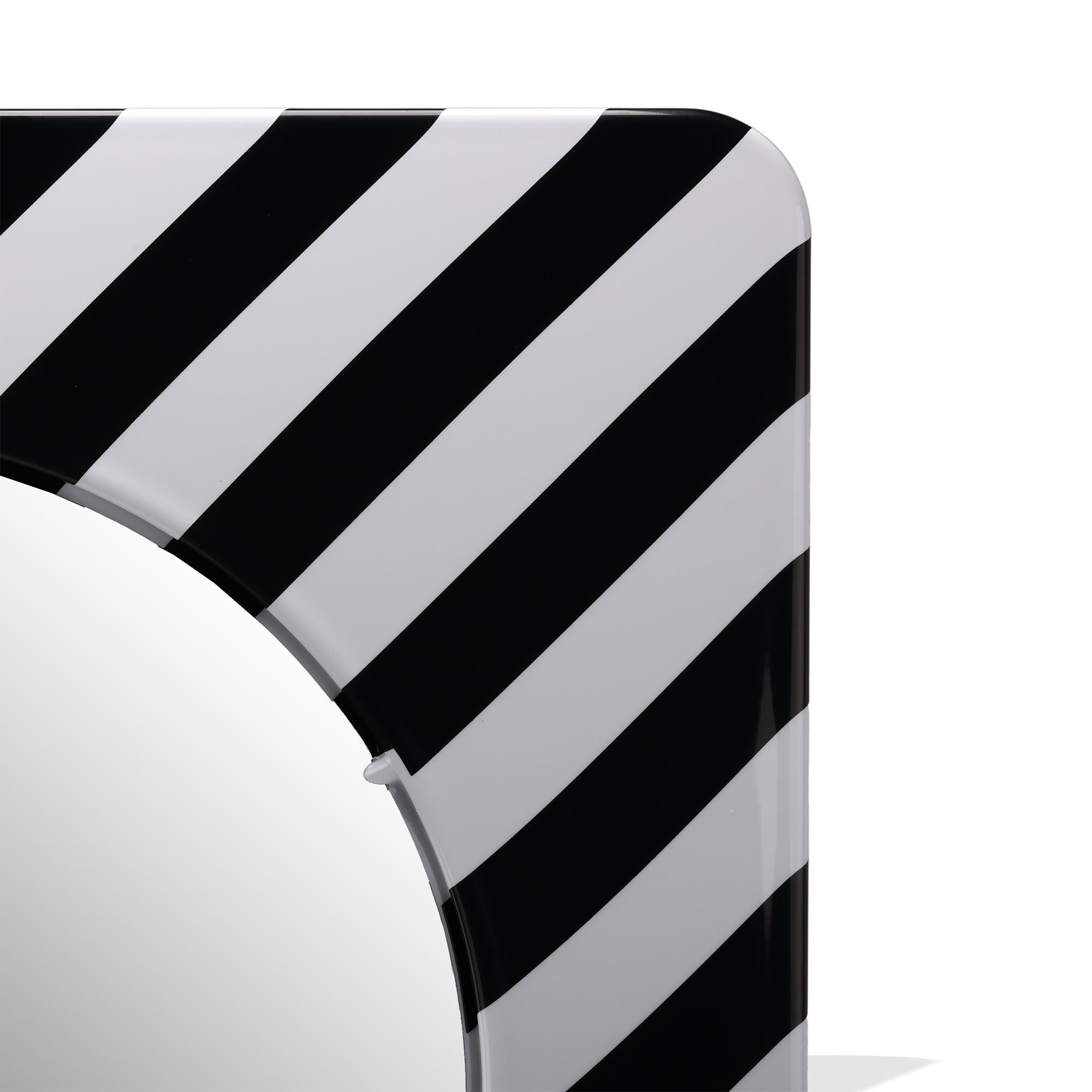

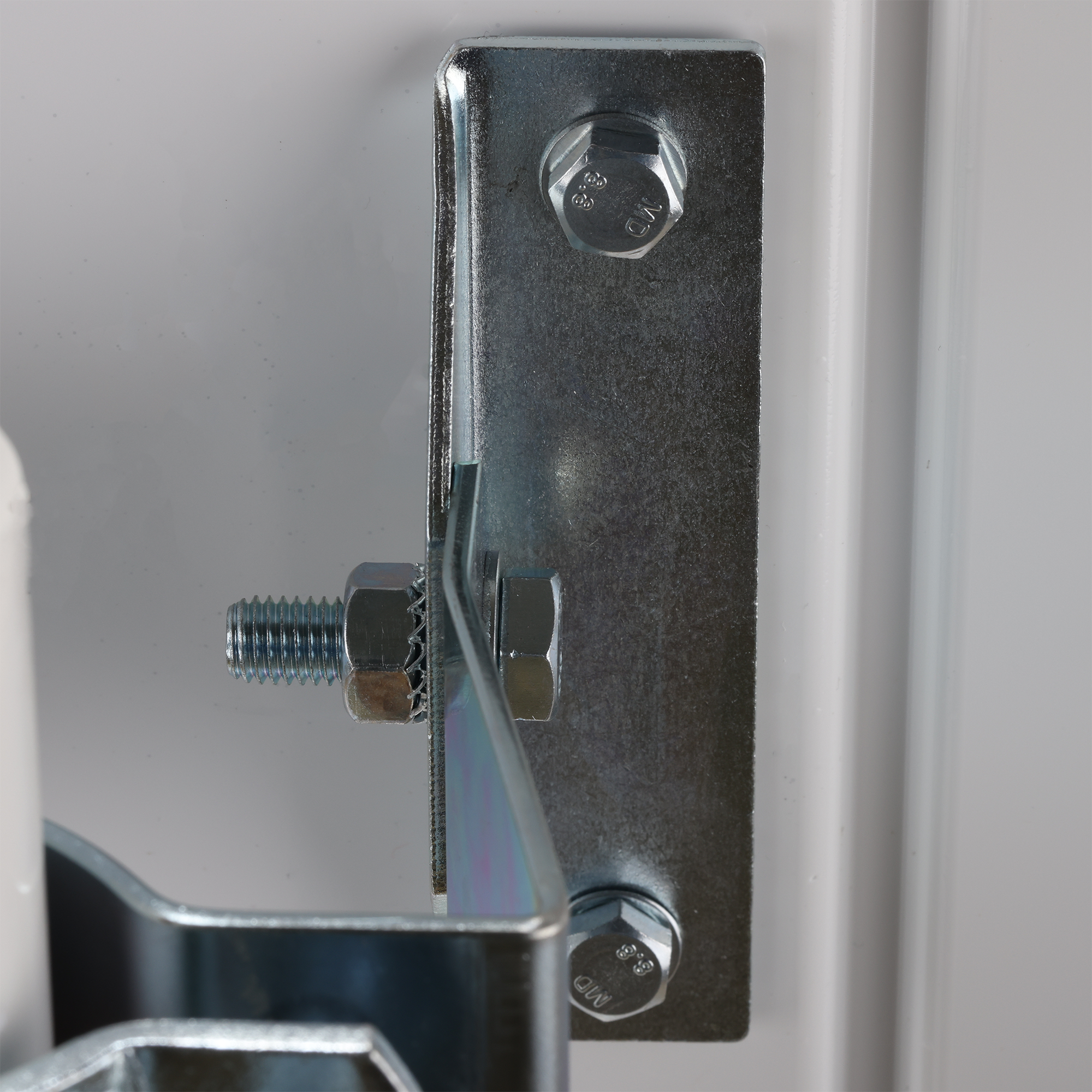

ED-F 60 / Detail view 1
ED-F 60 / Detail view 1
ED-F 60 / Detail view 2
ED-F 60 / Detail view 2
ED-F 60 / Detail view 3
ED-F 60 / Detail view 3

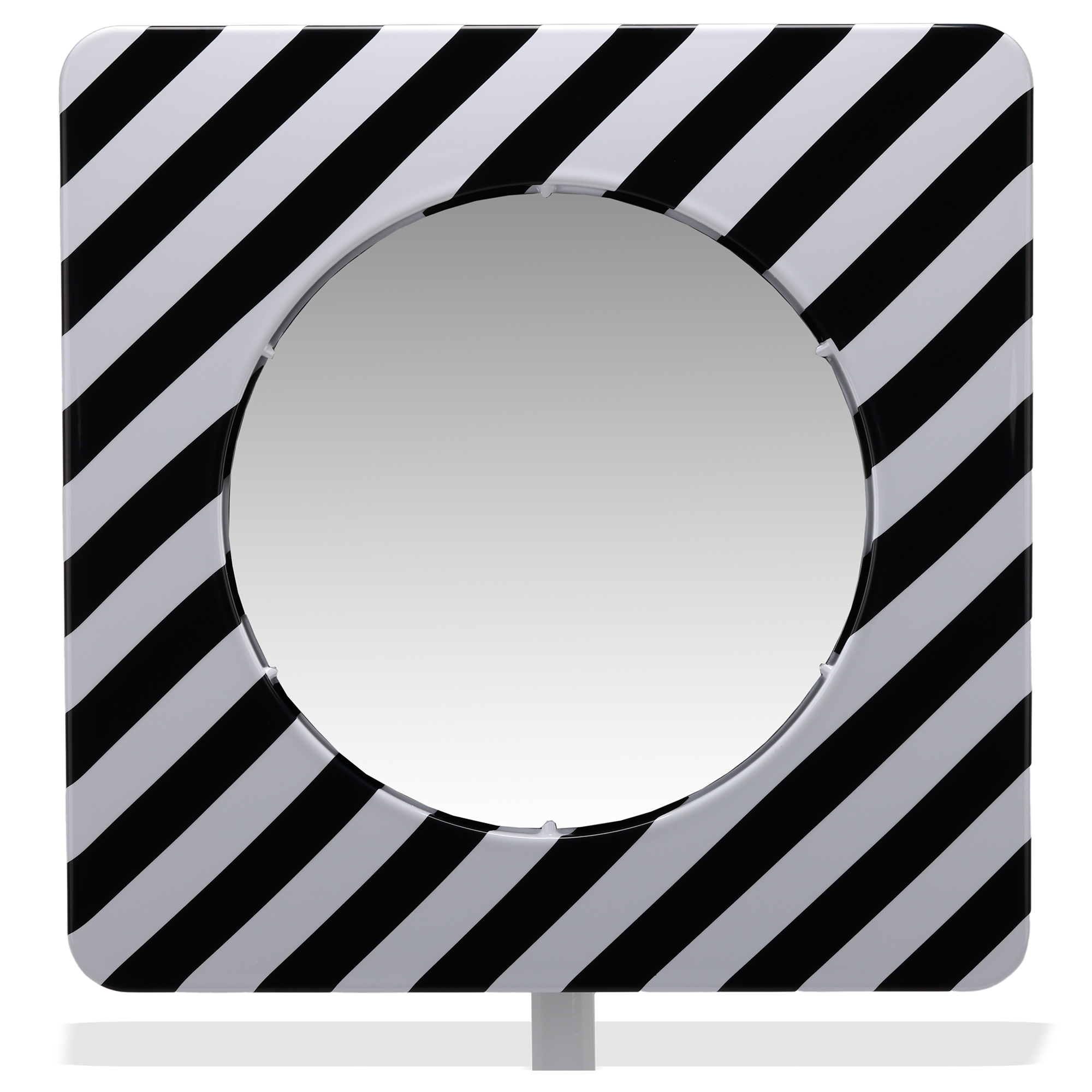

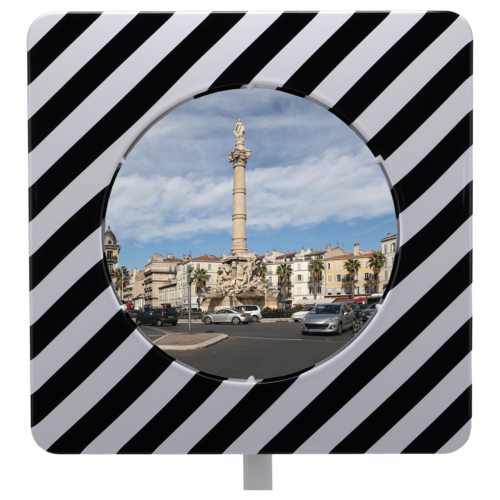

ED-F 60 / Front view
ED-F 60 / Front view

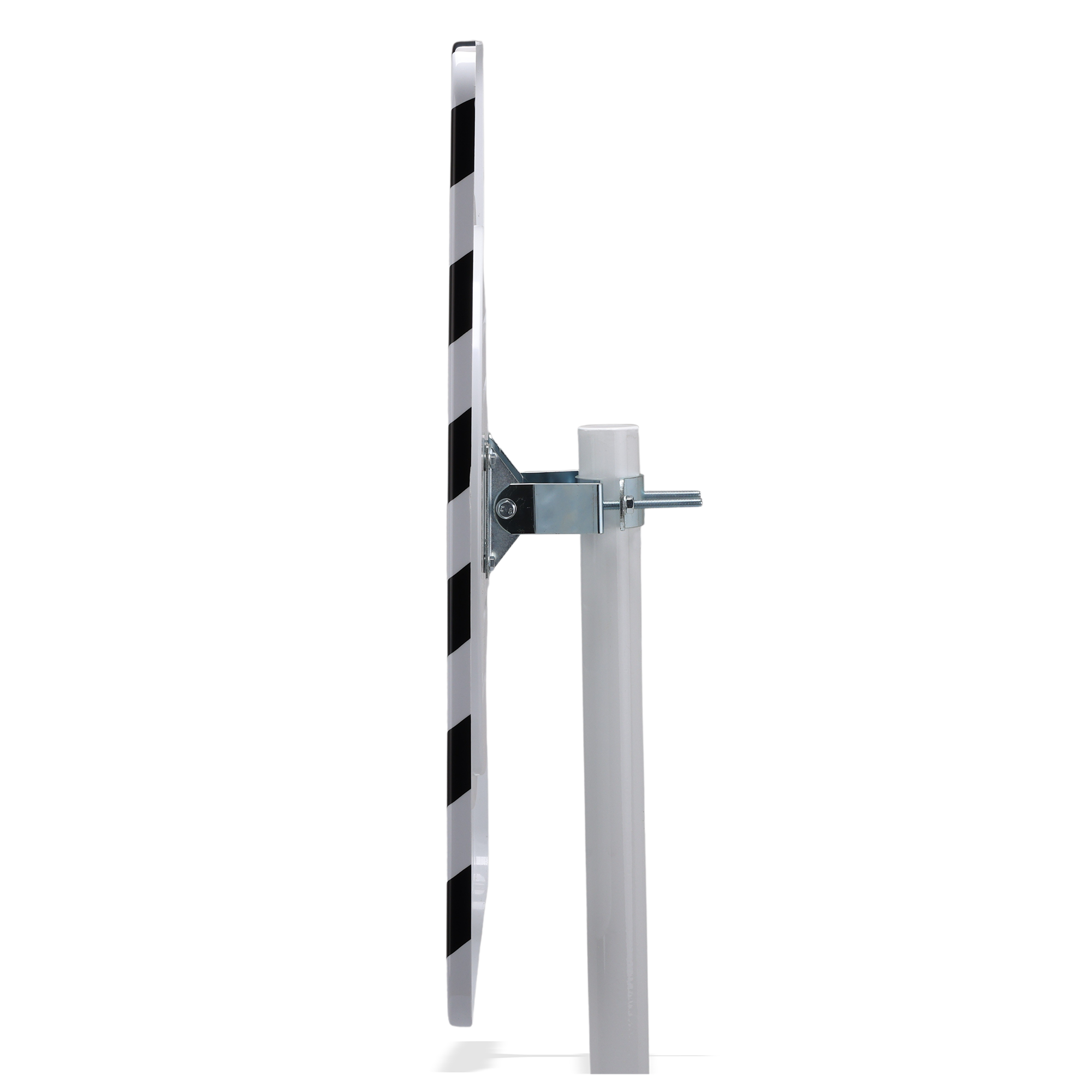

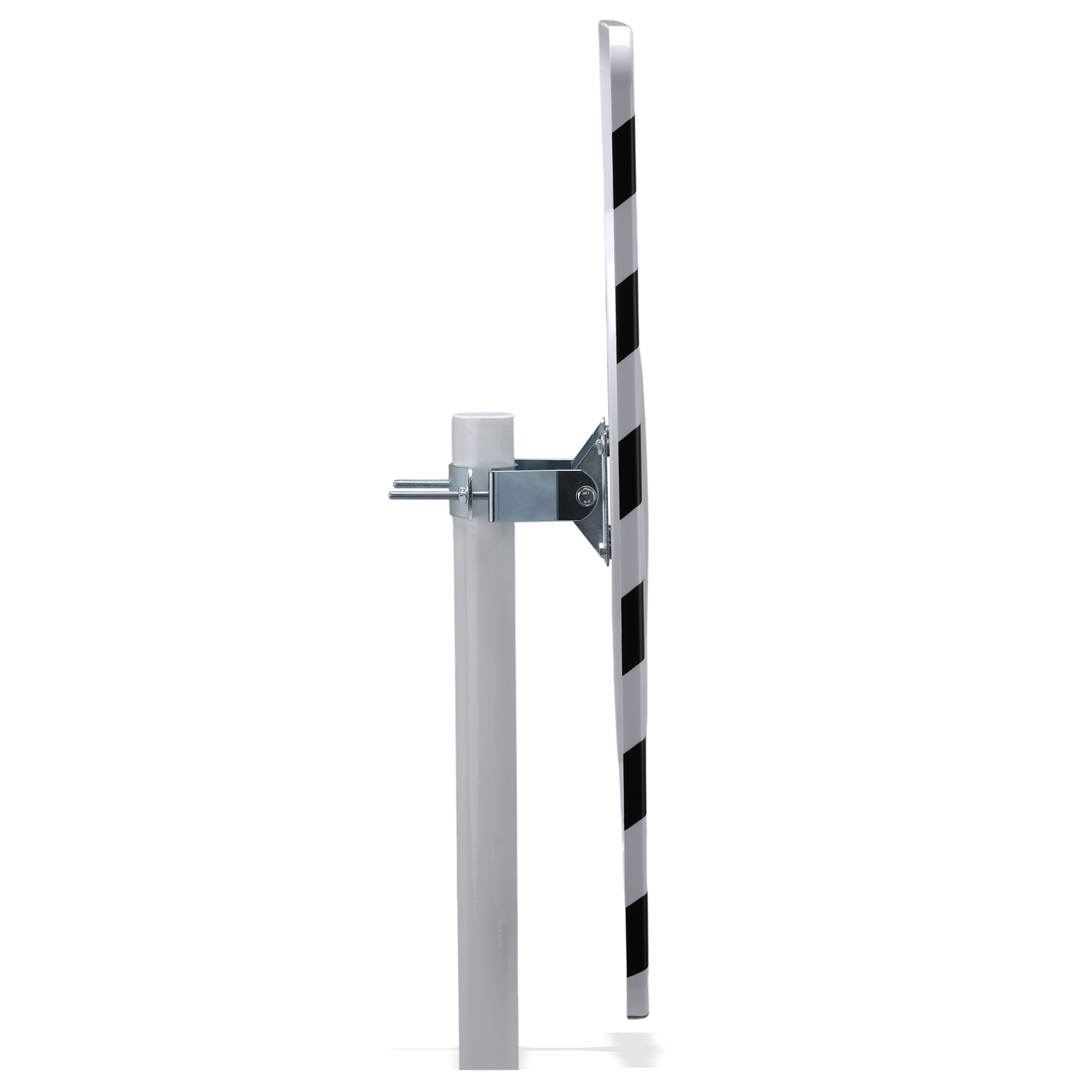

ED-F 60 / Profile view right
ED-F 60 / Profile view right
ED-F 60 / Profile view right
ED-F 60 / Profile view right

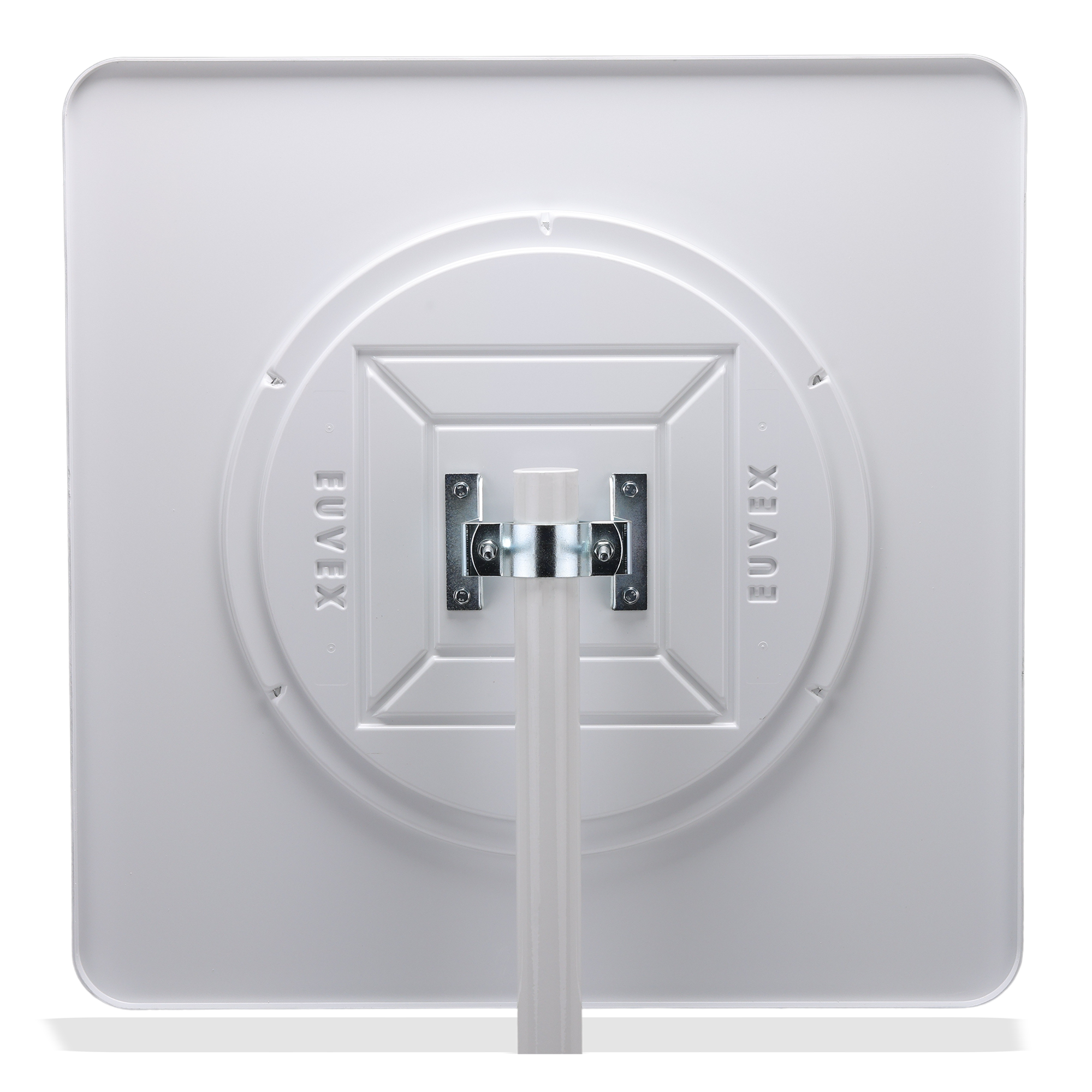

ED-F 60 / Rear view
ED-F 60 / Rear view
