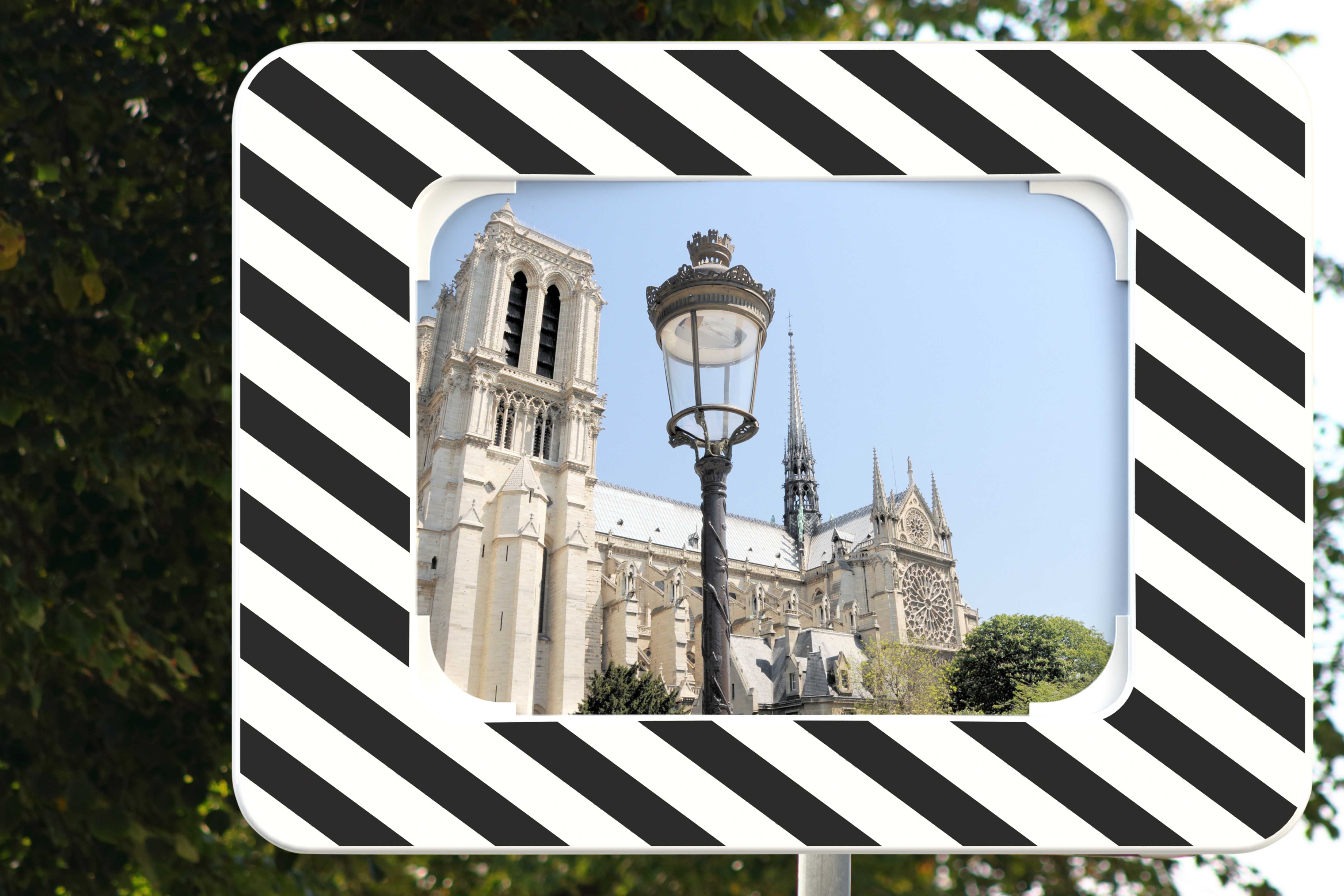

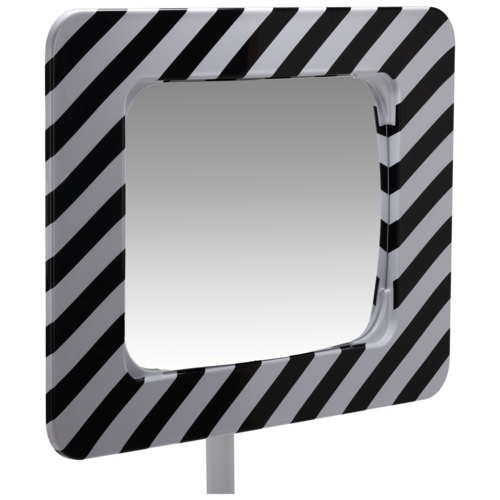

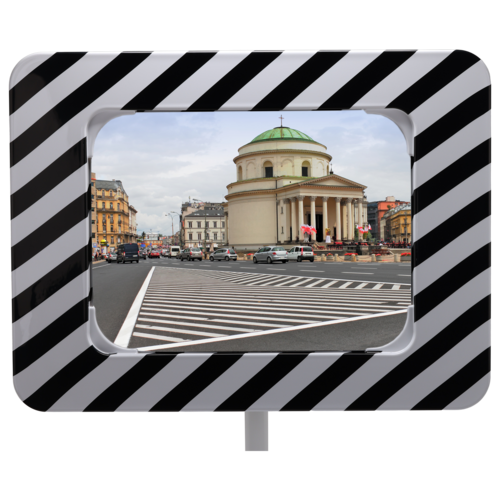

Acrylic mirror Bordeaux 80x60cm

ED-F 60 X 80 (GTIN 4250912310124)

Acrylic mirror Bordeaux 80x60cm

Description

Traffic mirror EUvex 60 x 80 cm, frame black-white, made of PMMA incl. fixing for posts 50 - 85 mm, metallized, acrylic mirror plate, 2 year warranty

Mirror plate (cm) 60 x 80
Observation distance (m) 15-22
Width (mm) 1209
Height (mm) 908
Depth/Length (mm) 40
Material Acrylic
Material surface
  • UV-resistant
  • impact resistant to DIN ISO 179-1
Frame material High-impact Polystyrene (HIPS)
Frame colour Black - white
Area of application Indoor and outdoor use
Net weight (kg) 6,901
Gross weight (kg) 10,125
Mounting location Post
Mounting Screw together
Delivery is Partly disassembled
Number of mounting holes 4
Fixing included Universal bracket for posts (Ø50-85mm) Art.No.: 747.07-5
Warranty 1 year
Brand EUvex

Downloads

Data sheet English Product ED-F 60 X 80

PDF, 25,92 KB

Download

Assembly guide Product ED-F 60 X 80

PDF, 387,77 KB

Download
Acrylic mirror Bordeaux 80x60cm

Impressions
