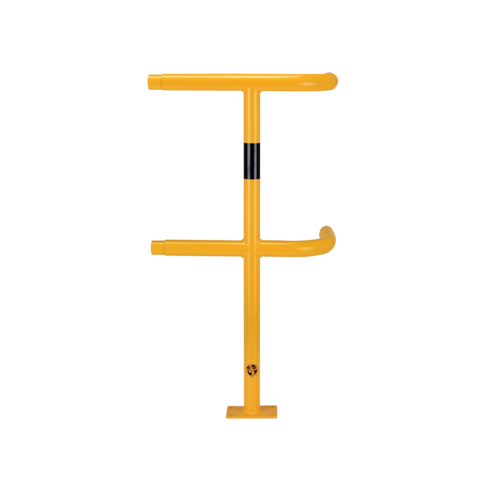

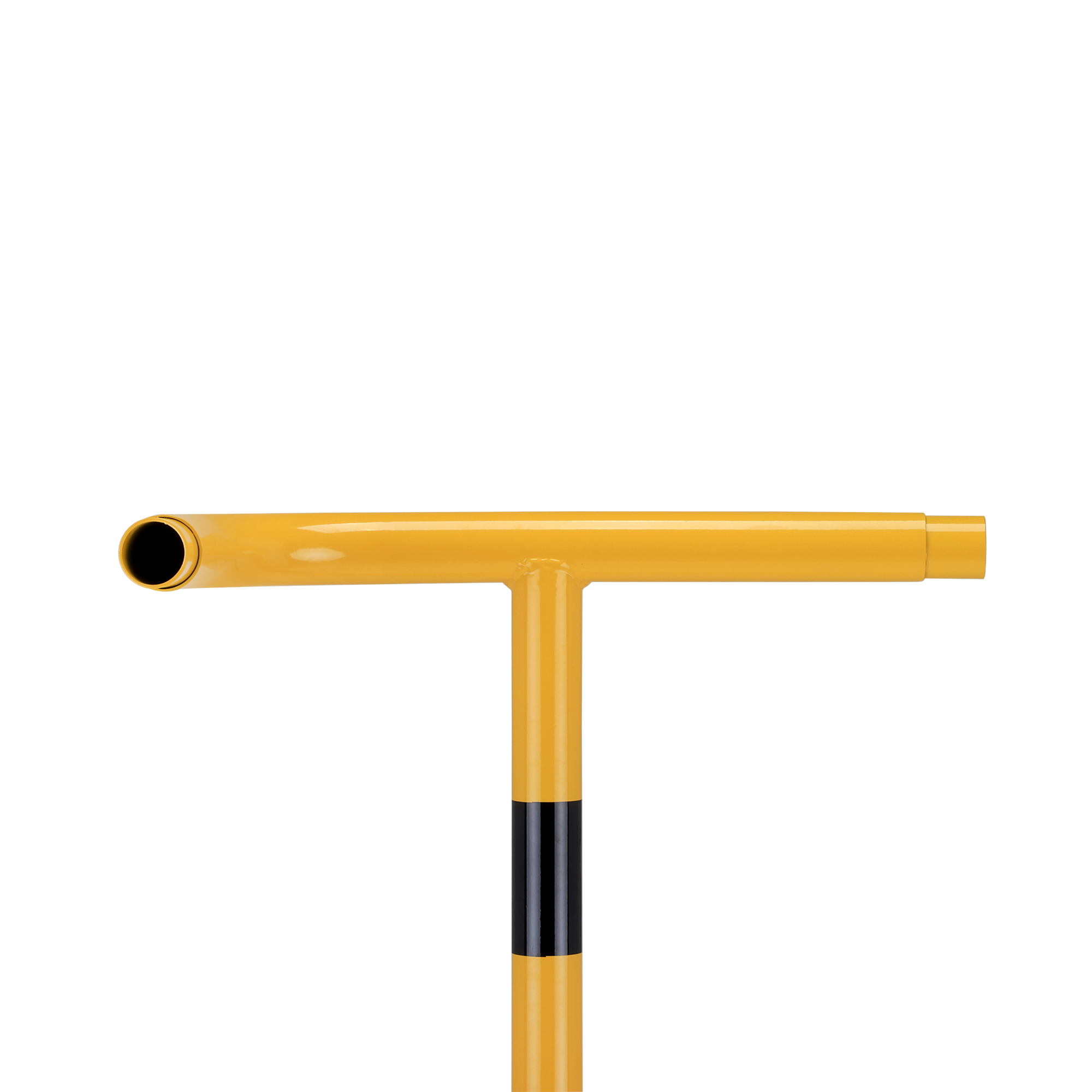

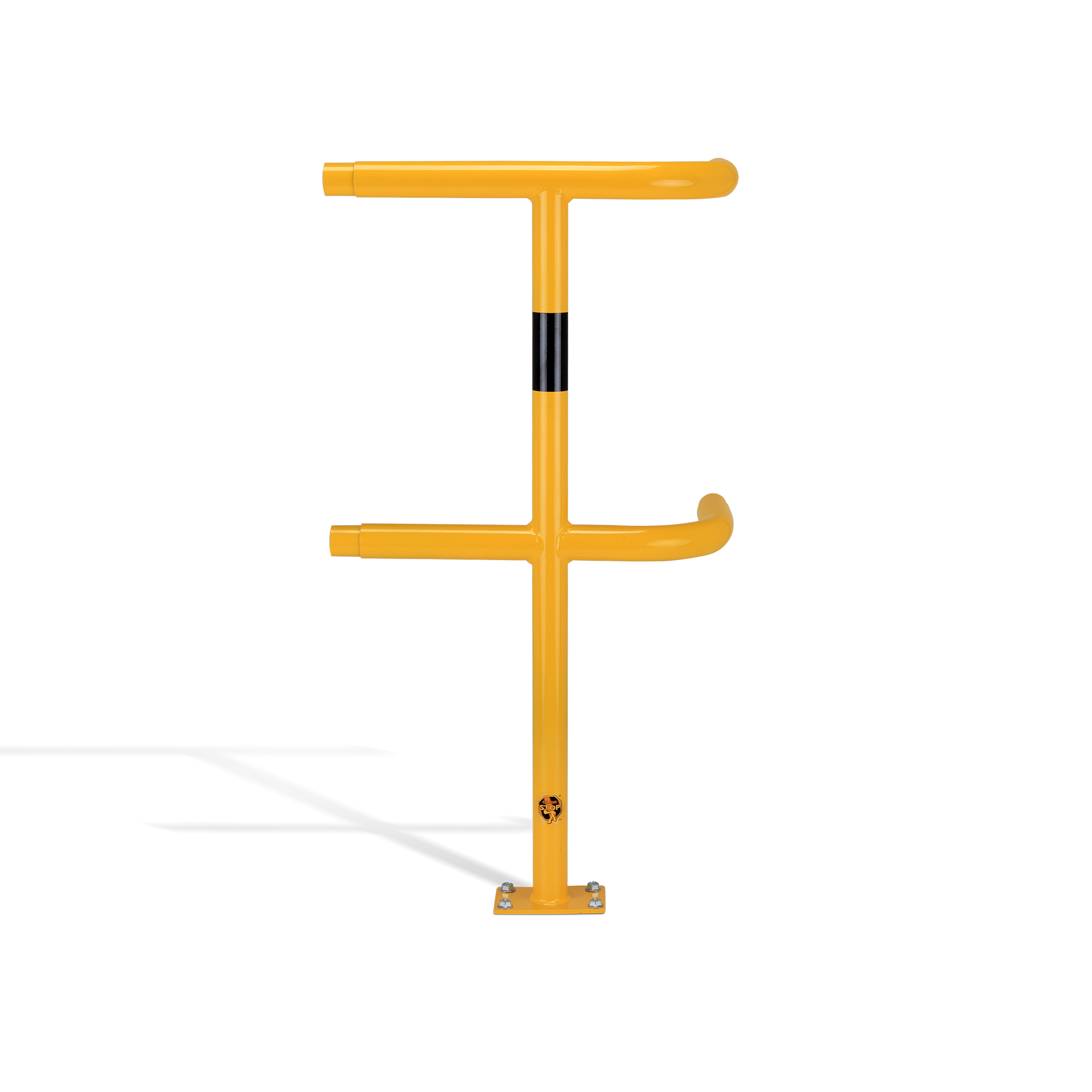

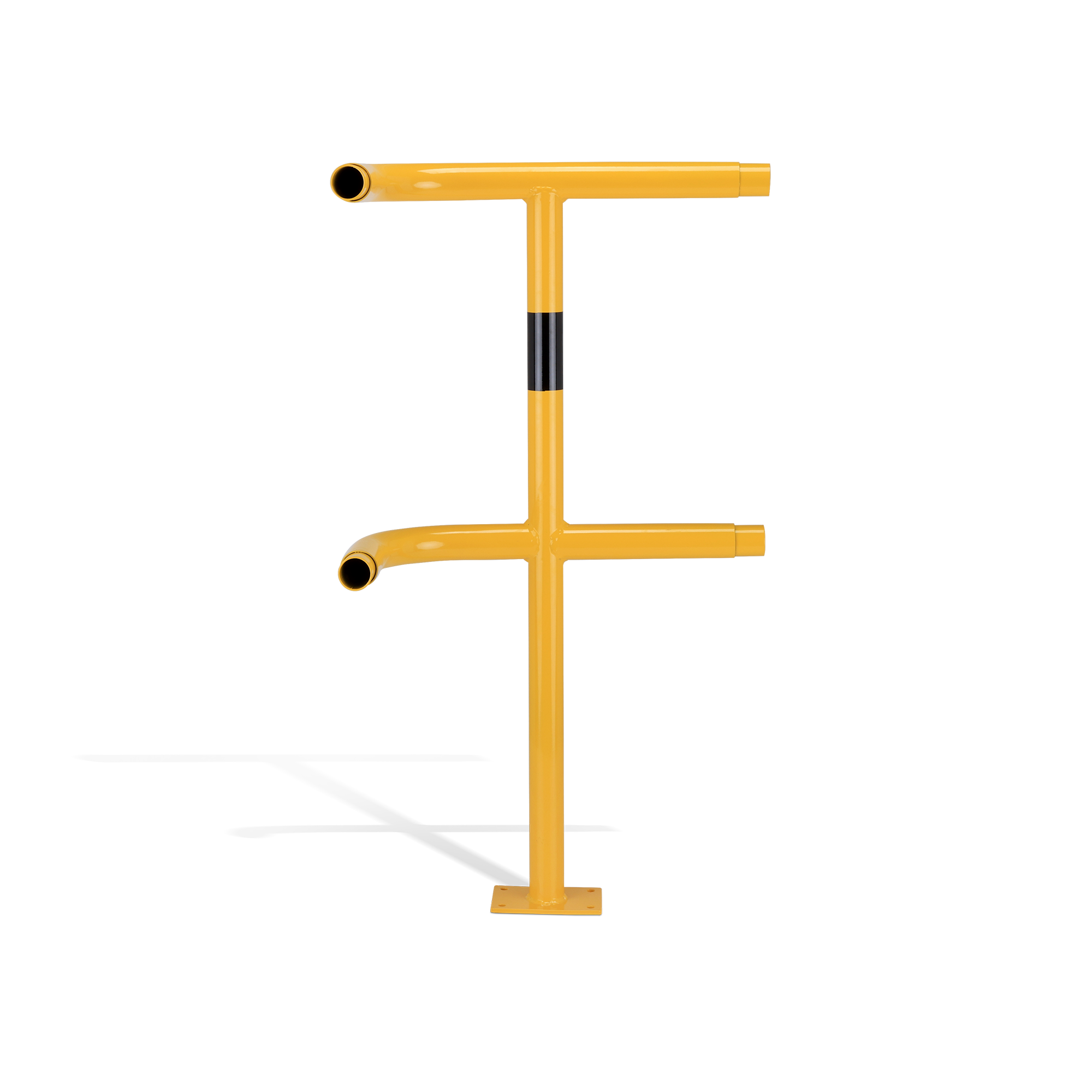

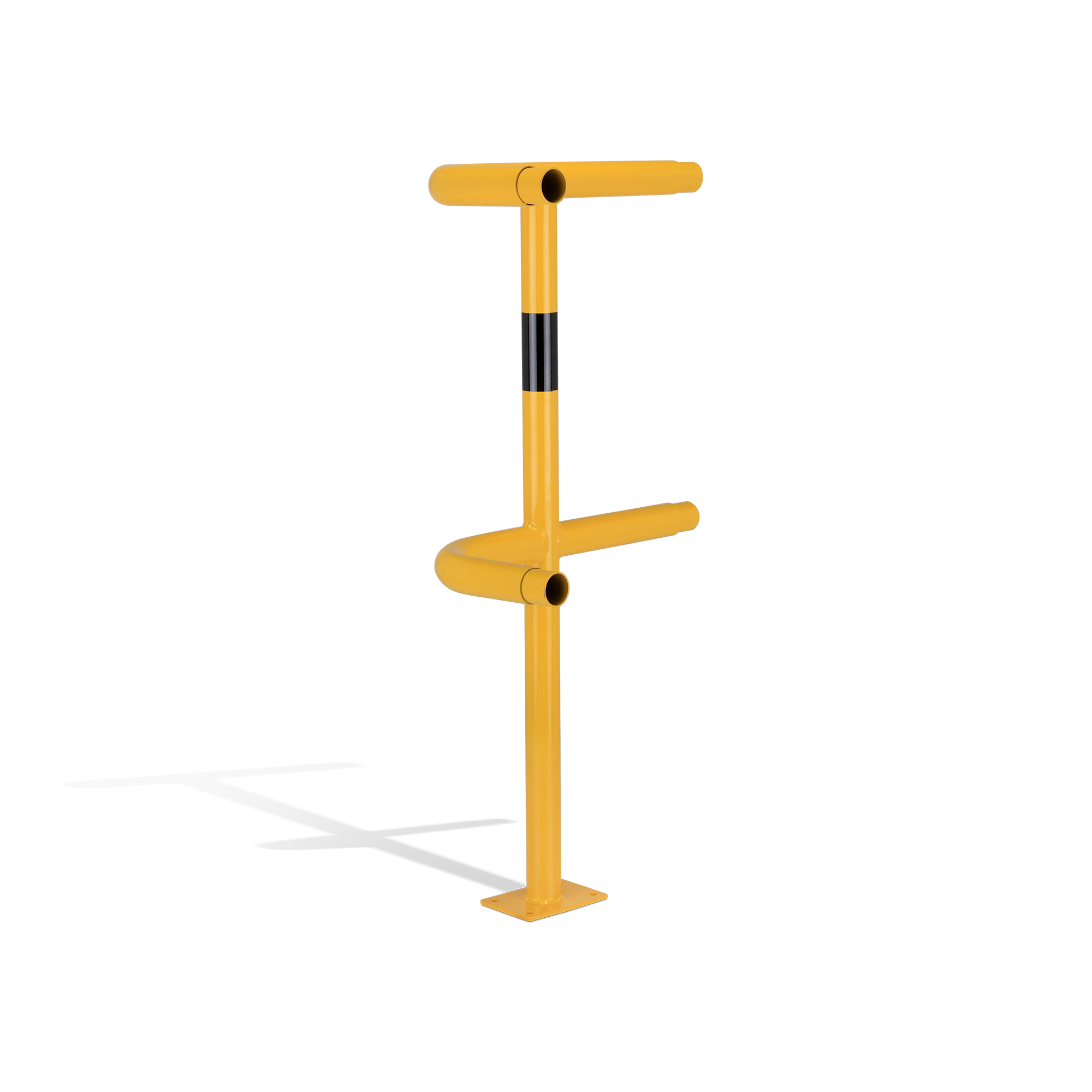

Angle post safety railing Ø48

W-SG (GTIN 4250912308787)

Angle post safety railing Ø48

Description

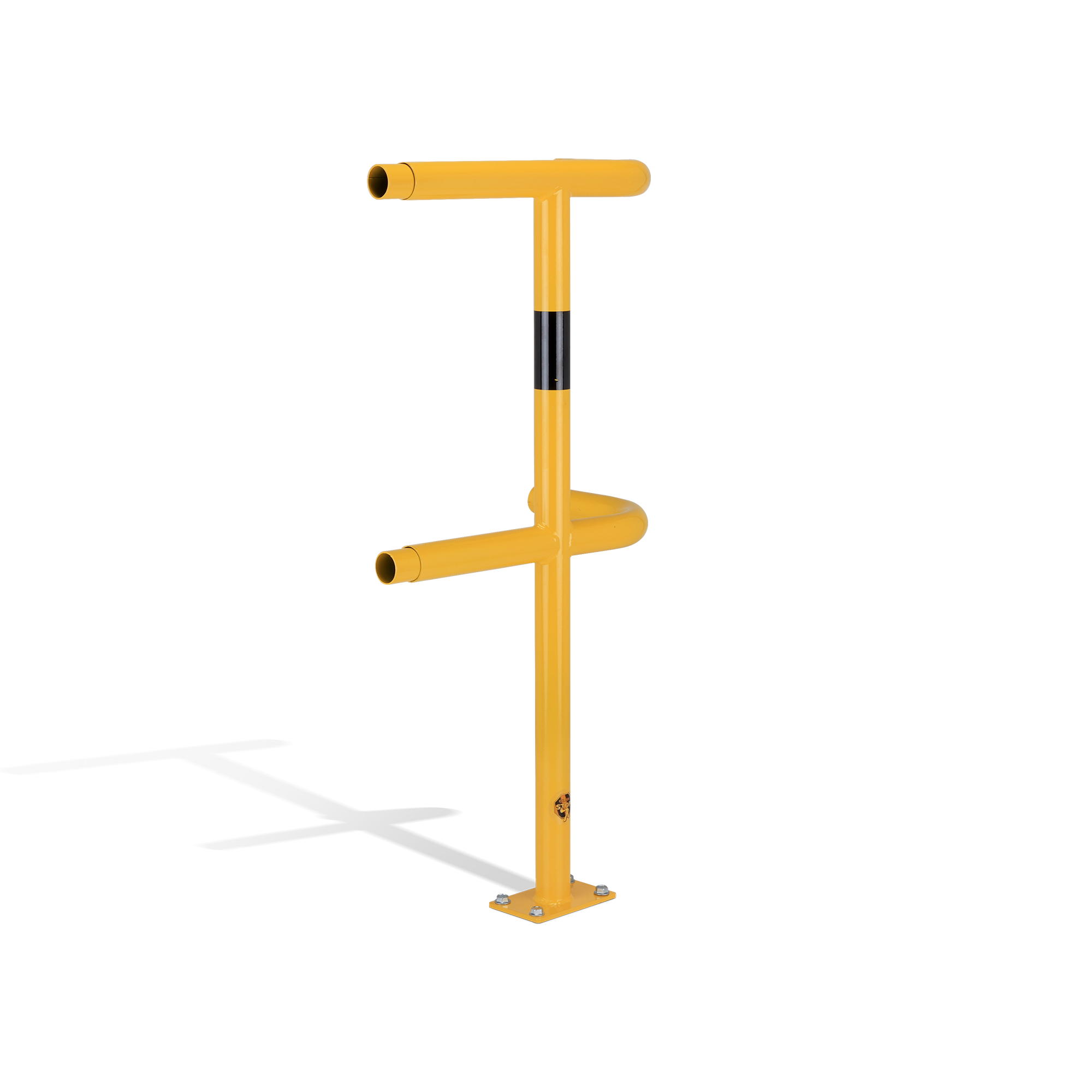

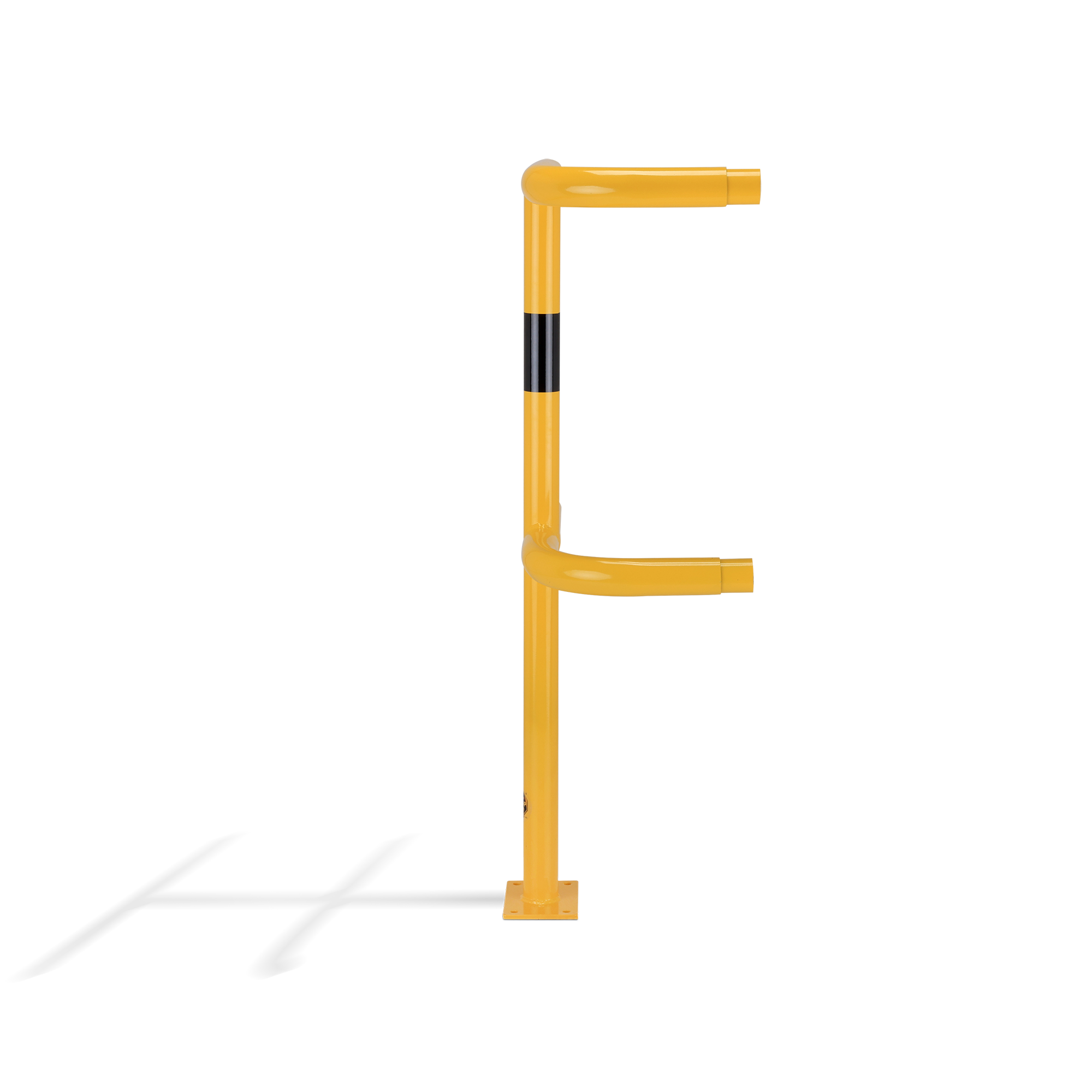

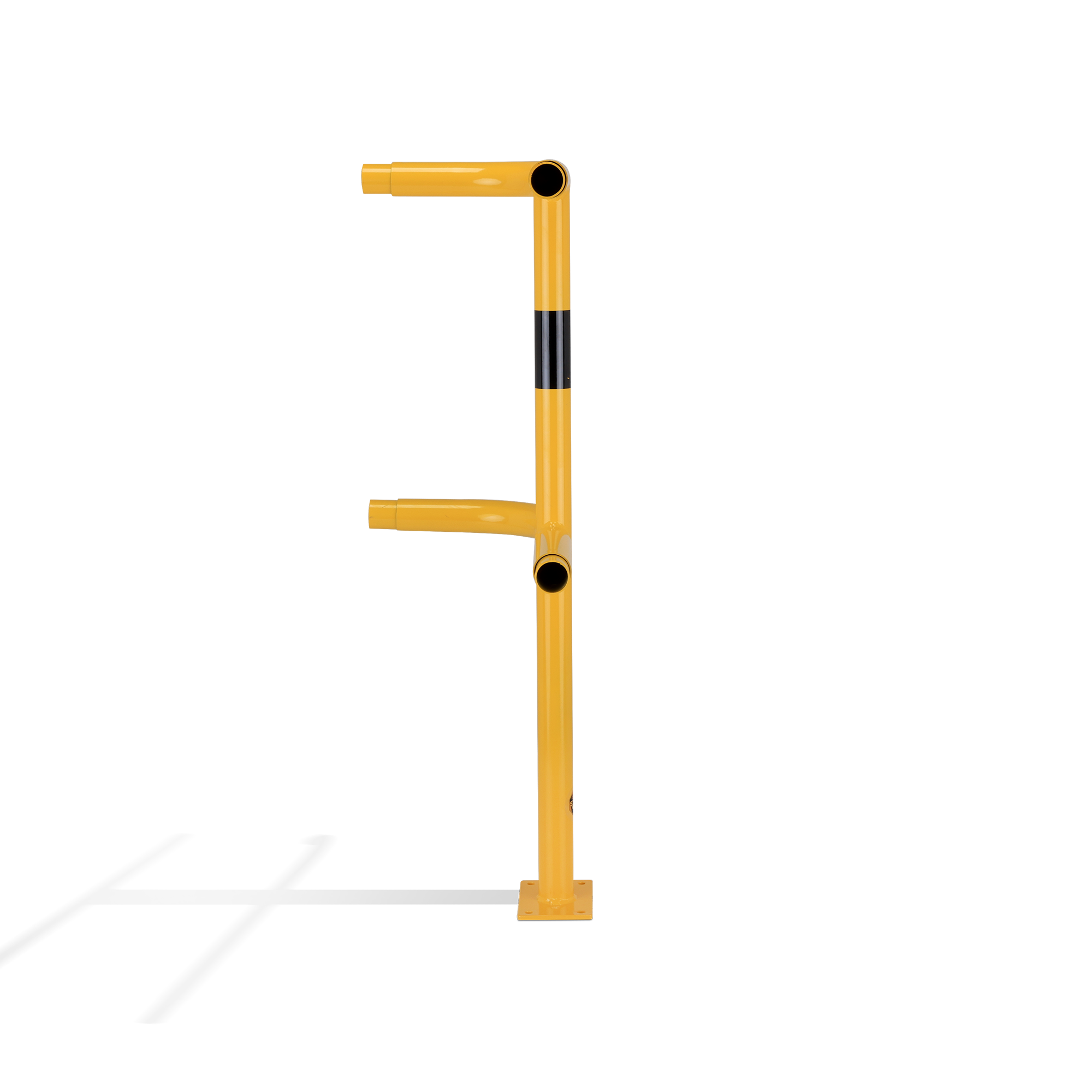

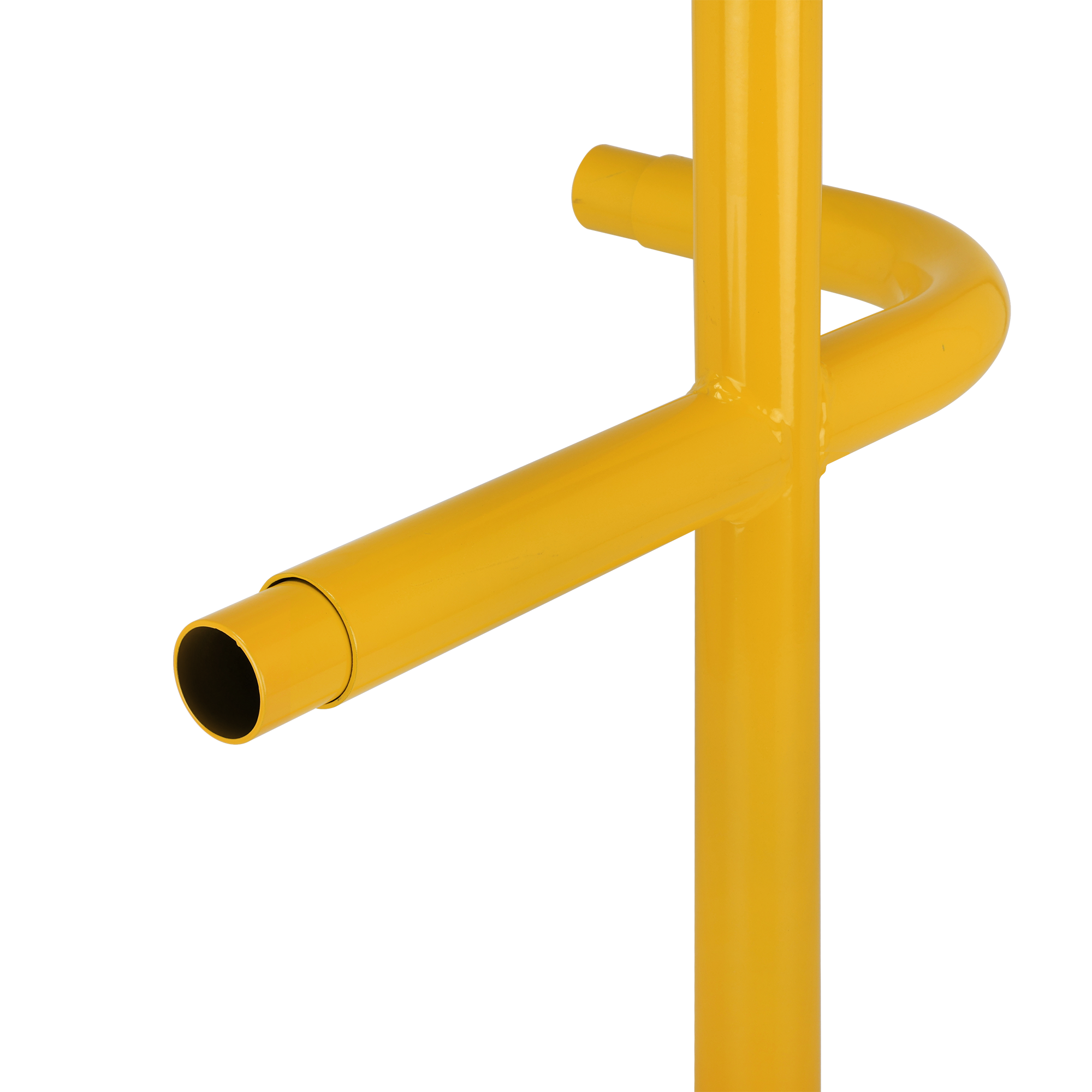

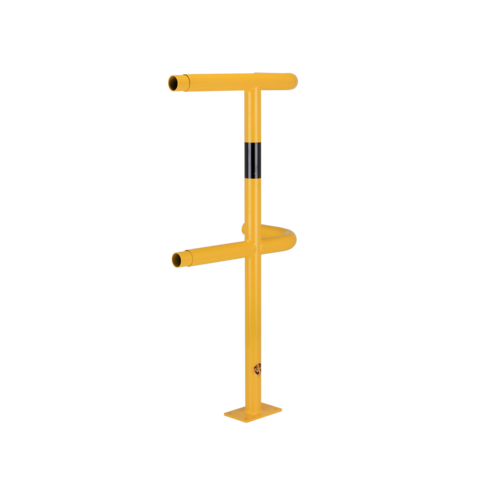

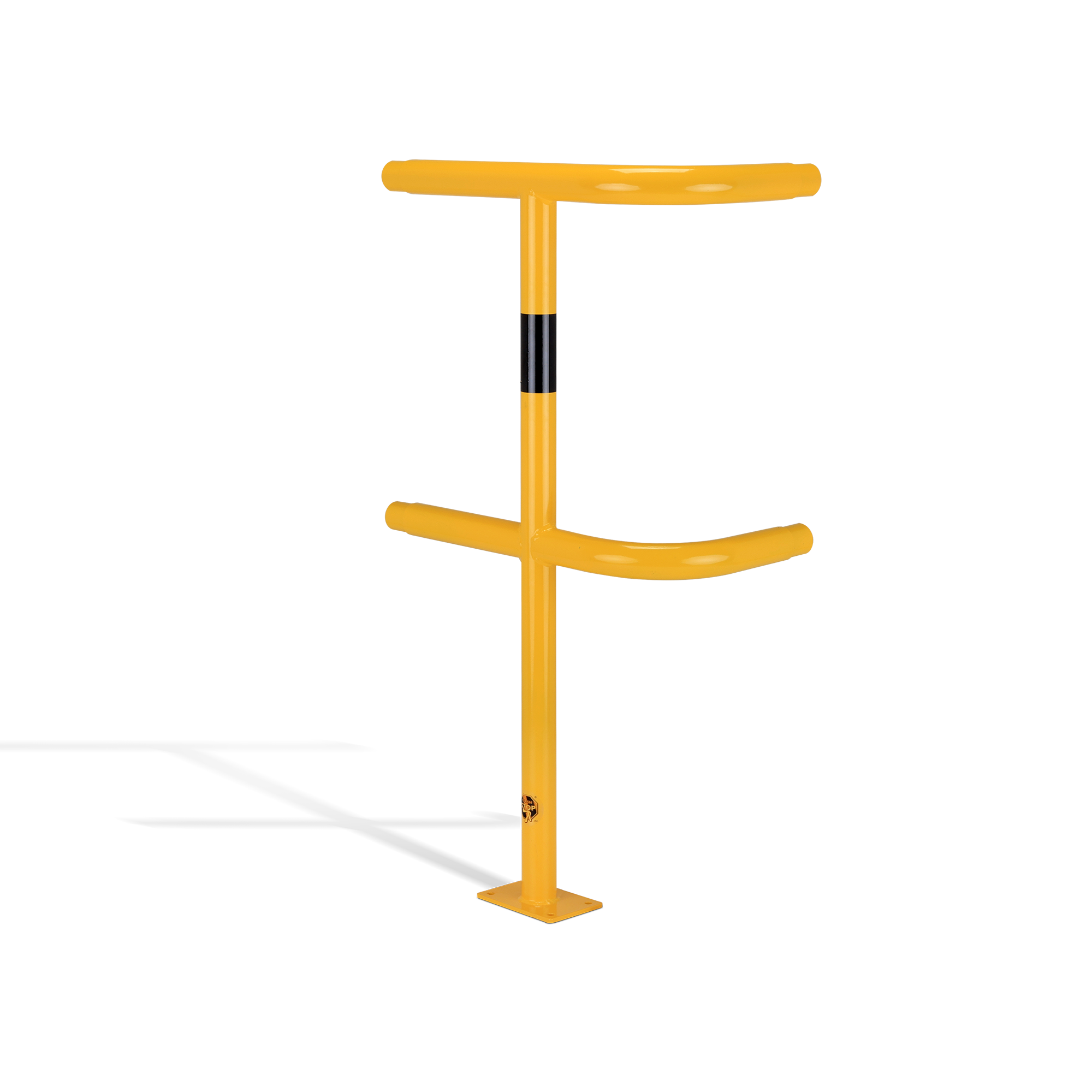

Corner post safety rail Ø 48.3 mm made of steel 2.9 mm, 1000 x 250 x 250 mm, 7.2 kg - galvanised and yellow coated (similar to RAL 1023) with black foil, mounting plate 150 x 100 x 6 mm, 4 mounting holes Ø 10 mm

Material Steel
Material surface
  • Galvanized
  • powder coated
Material thickness (mm) 2,9
Colour Yellow
Warning mark Black warning mark
Shape Round
Width (mm) 500
Height (mm) 1000
Depth/Length (mm) 250
Diameter (mm) 48,3
Net weight (kg) 7,4
Width without foot plate (mm) 500
Depth without foot plate (mm) 250
Area of application Indoor and outdoor use
Mounting location Paved ground
Mounting Bolting
Delivery is Pre-assembled
Number of mounting holes 4
Fixing included Mounting material not included
Accessories (optional) Mounting Art. No. FIX 1

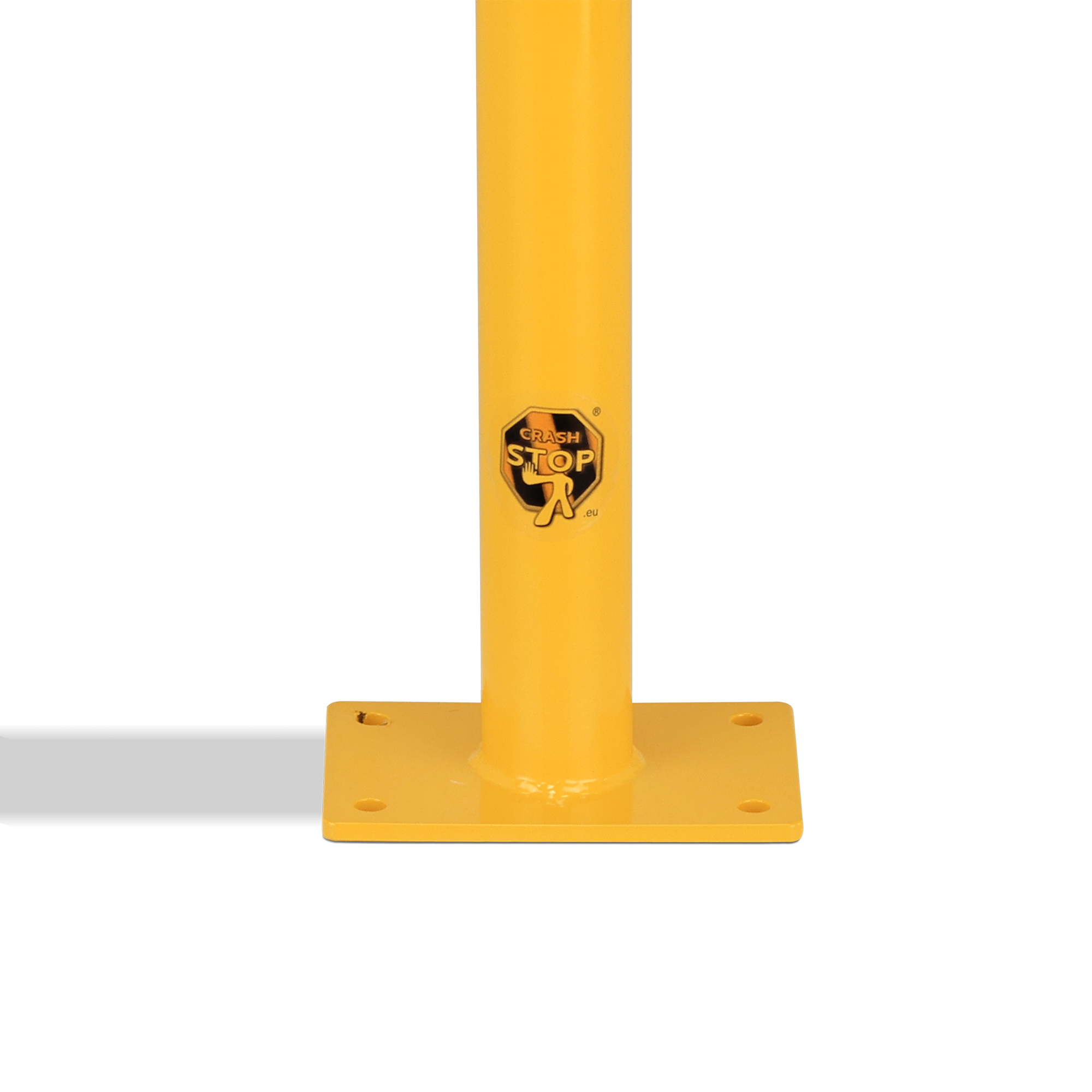

Foot plate width (mm) 150
Foot plate depth (mm) 100
Foot plate height (mm) 6
Foot plate colour Yellow
Warranty 1 year
Brand Crash Stop

Downloads

Data sheet English Product W-SG

PDF, 20,27 KB

Download
