Traffic Mirror with Heater New
Back
Description
The TM-H traffic mirror with heating from the Dancop brand offers increased safety in road traffic and on company premises and reduces the risk of accidents. Thanks to the integrated heater and the acrylic or polycarbonate mirror surface, the TM-H mirrors are particularly suitable for use in cold weather. This design prevents fogging and ice formation on the mirror surface. Furthermore, the different shapes, round or rectangular, as well as the different dimensions and materials make them suitable for almost any application required in the traffic sector, especially at blind entrances and exits and tight bends.
TÜV and wind load certified, with reflectors, type RA 2, the mirrors can be used with a high degree of safety and particularly good visibility even in poor weather conditions.
The 4-point ball joint bracket is included in the scope of delivery for optimum mounting.
Other brackets and accessories are available separately.
Our sales team will be happy to help you make the right choice and answer any questions you may have.
Models and Dimensions
-
TM-H AC 100 X 120
Acrylic mirror London 120x100cm with heating
GTIN: 4250912306721 -
TM-H AC 40 X 60
Acrylic mirror London 60x40m with heating
GTIN: 4250912306738 -
TM-H AC 60
Acrylic mirror London Ø60cm with heating
GTIN: 4250912310681 -
TM-H AC 60 X 80
Acrylic mirror London 80x60cm with heating
GTIN: 4250912306745 -
TM-H AC 80
Acrylic mirror London Ø80cm with heating
GTIN: 4250912310698 -
TM-H AC 80 X 100
Acrylic mirror London 100x80cm with heating
GTIN: 4250912306752 -
TM-H PC 100 X 120
Polycarbonate mirror Rome 120x100cm with heating
GTIN: 4250912307766 -
TM-H PC 40 X 60
Polycarbonate mirror Rome 60x40cm with heating
GTIN: 4250912306769 -
TM-H PC 60 X 80
Polycarbonate mirror Rome 80x60cm with heating
GTIN: 4250912306776 -
TM-H PC 80 X 100
Polycarbonate mirror Rome 100x80cm with heating
GTIN: 4250912306783
Modal body text goes here.
TM-H AC 100 X 120 - Acrylic mirror London 120x100cm with heating
Acrylic mirror London 120x100cm with heating
| Mirror plate (cm) | 100 x 120 |
| Observation distance (m) | 27-32 |
| Width (mm) | 1335 |
| Height (mm) | 1135 |
| Depth/Length (mm) | 20 |
| Material | Acrylic |
| Material surface |
|
| Frame material | high-impact Polystyrene (HIPS) |
| Frame colour | white |
| Warning mark | red reflective warning mark |
| Area of application | indoor and outdoor use |
| Net weight (kg) | 15,5 |
| Gross weight (kg) | 17,5 |
| Mounting location |
|
| Mounting | screw together |
| Number of mounting holes | 4 |
| Fixing included | 4-point ball joint mounting Art.No.: 747.03-4 |
| Features | The heater is thermostat-controlled and switches the heating element on when the temperature is below 20 degrees. It is connected to the socket via a standard 220 volt cable and has a power consumption of ~55 W/m2. |
| Warranty | 5 years |
| Brand | Dancop |
| Approval / Certification | Wind load certified |
| ETIM Class Code | EC003579 |
TM-H AC 40 X 60 - Acrylic mirror London 60x40m with heating
Acrylic mirror London 60x40m with heating
| Mirror plate (cm) | 40 x 60 |
| Observation distance (m) | 9-15 |
| Width (mm) | 760 |
| Height (mm) | 610 |
| Depth/Length (mm) | 20 |
| Material | Acrylic |
| Material surface |
|
| Frame material | high-impact Polystyrene (HIPS) |
| Frame colour | white |
| Warning mark | red reflective warning mark |
| Area of application | indoor and outdoor use |
| Net weight (kg) | 5,5 |
| Gross weight (kg) | 7,5 |
| Mounting location |
|
| Mounting | screw together |
| Number of mounting holes | 4 |
| Fixing included | 4-point ball joint mounting Art.No.: 747.01-7 |
| Features | The heater is thermostat-controlled and switches the heating element on when the temperature is below 20 degrees. It is connected to the socket via a standard 220 volt cable and has a power consumption of ~55 W/m2. |
| Warranty | 5 years |
| Brand | Dancop |
| Approval / Certification | Wind load certified |
| ETIM Class Code | EC003579 |
TM-H AC 60 - Acrylic mirror London Ø60cm with heating
Acrylic mirror London Ø60cm with heating
| Mirror plate (cm) | 60 Ø |
| Observation distance (m) | 9-15 |
| Depth/Length (mm) | 20 |
| Diameter (mm) | 725 |
| Material | Acrylic |
| Material surface |
|
| Frame colour | white |
| Warning mark | red reflective warning mark |
| Area of application | indoor and outdoor use |
| Net weight (kg) | 6,6 |
| Gross weight (kg) | 8,6 |
| Mounting location |
|
| Mounting | screw together |
| Number of mounting holes | 4 |
| Fixing included | 4-point ball joint mounting Art.No.: 747.01-7 |
| Features | The heater is thermostat-controlled and switches the heating element on when the temperature is below 20 degrees. It is connected to the socket via a standard 220 volt cable and has a power consumption of ~55 W/m2. |
| Warranty | 5 years |
| Brand | Dancop |
| Approval / Certification | Wind load certified |
| ETIM Class Code | EC003579 |

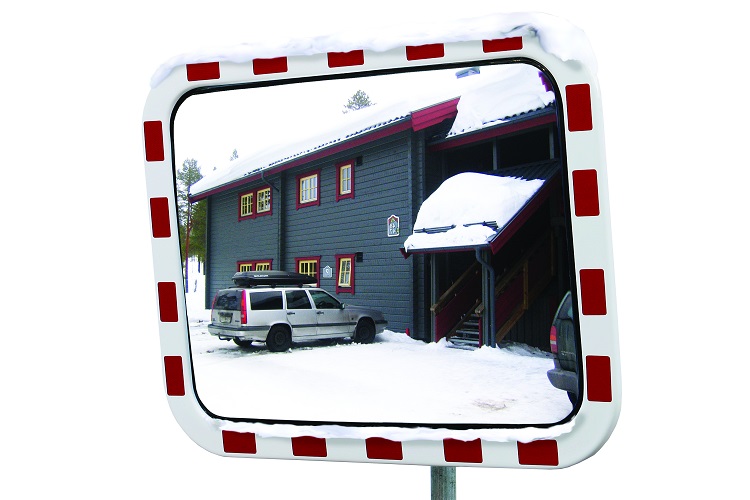

TM-H AC 60 X 80 - Acrylic mirror London 80x60cm with heating
Acrylic mirror London 80x60cm with heating
| Mirror plate (cm) | 60 x 80 |
| Observation distance (m) | 15-22 |
| Width (mm) | 850 |
| Height (mm) | 750 |
| Depth/Length (mm) | 30 |
| Material | Acrylic |
| Material surface |
|
| Frame material | high-impact Polystyrene (HIPS) |
| Frame colour | white |
| Warning mark | red reflective warning mark |
| Area of application | indoor and outdoor use |
| Net weight (kg) | 9 |
| Gross weight (kg) | 11 |
| Mounting location |
|
| Mounting | screw together |
| Number of mounting holes | 4 |
| Fixing included | 4-point ball joint mounting Art.No.: 747.02-5 |
| Features | The heater is thermostat-controlled and switches the heating element on when the temperature is below 20 degrees. It is connected to the socket via a standard 220 volt cable and has a power consumption of ~55 W/m2. |
| Warranty | 5 years |
| Brand | Dancop |
| Approval / Certification | Wind load certified |
| ETIM Class Code | EC003579 |

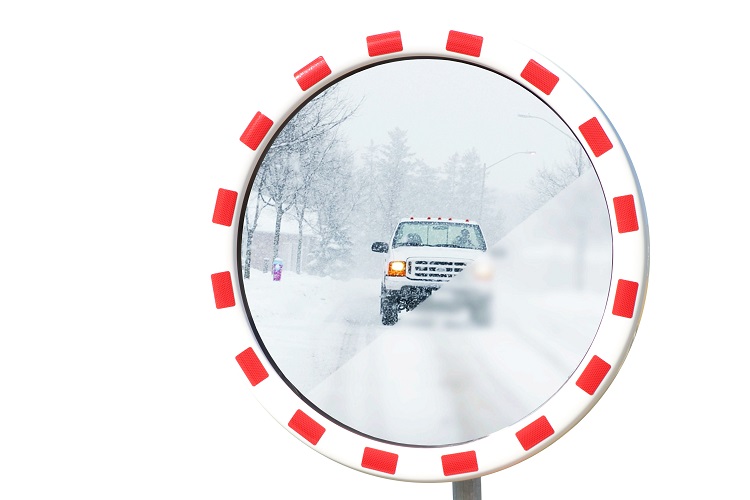

TM-H AC 80 - Acrylic mirror London Ø80cm with heating
Acrylic mirror London Ø80cm with heating
| Mirror plate (cm) | 80 Ø |
| Observation distance (m) | 15-22 |
| Depth/Length (mm) | 20 |
| Diameter (mm) | 930 |
| Material | Acrylic |
| Material surface |
|
| Frame material | high-impact Polystyrene (HIPS) |
| Frame colour | white |
| Warning mark | red reflective warning mark |
| Area of application | indoor and outdoor use |
| Net weight (kg) | 9,8 |
| Gross weight (kg) | 11,8 |
| Mounting location |
|
| Mounting | screw together |
| Number of mounting holes | 4 |
| Fixing included | 4-point ball joint mounting Art.No.: 747.01-7 |
| Features | The heater is thermostat-controlled and switches the heating element on when the temperature is below 20 degrees. It is connected to the socket via a standard 220 volt cable and has a power consumption of ~55 W/m2. |
| Warranty | 5 years |
| Brand | Dancop |
| Approval / Certification | Wind load certified |
| ETIM Class Code | EC003579 |
TM-H AC 80 X 100 - Acrylic mirror London 100x80cm with heating
Acrylic mirror London 100x80cm with heating
| Mirror plate (cm) | 80 x 100 |
| Observation distance (m) | 22-27 |
| Width (mm) | 1150 |
| Height (mm) | 960 |
| Depth/Length (mm) | 30 |
| Material | Acrylic |
| Material surface |
|
| Frame material | high-impact Polystyrene (HIPS) |
| Frame colour | white |
| Warning mark | red reflective warning mark |
| Area of application | indoor and outdoor use |
| Net weight (kg) | 12 |
| Gross weight (kg) | 14 |
| Mounting location |
|
| Mounting | screw together |
| Number of mounting holes | 4 |
| Fixing included | 4-point ball joint mounting Art.No.: 747.03-4 |
| Features | The heater is thermostat-controlled and switches the heating element on when the temperature is below 20 degrees. It is connected to the socket via a standard 220 volt cable and has a power consumption of ~55 W/m2. |
| Warranty | 5 years |
| Brand | Dancop |
| Approval / Certification | Wind load certified |
| ETIM Class Code | EC003579 |

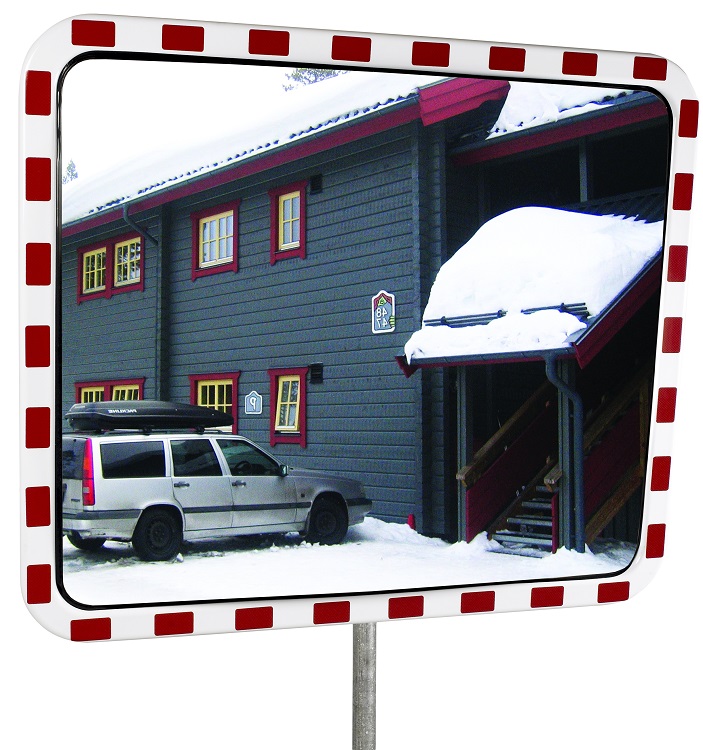

TM-H PC 100 X 120 - Polycarbonate mirror Rome 120x100cm with heating
Polycarbonate mirror Rome 120x100cm with heating
| Mirror plate (cm) | 100 x 120 |
| Observation distance (m) | 27-32 |
| Width (mm) | 1335 |
| Height (mm) | 1135 |
| Depth/Length (mm) | 20 |
| Material | Polycarbonate |
| Material surface |
|
| Frame colour | white |
| Warning mark | red warning mark |
| Area of application | indoor and outdoor use |
| Net weight (kg) | 15,5 |
| Gross weight (kg) | 17,5 |
| Mounting location |
|
| Mounting | screw together |
| Number of mounting holes | 4 |
| Fixing included | 4-point ball joint mounting Art.No.: 747.03-4 |
| Features | The heater is thermostat-controlled and switches the heating element on when the temperature is below 20 degrees. It is connected to the socket via a standard 220 volt cable and has a power consumption of ~55 W/m2. |
| Warranty | 5 years |
| Brand | Dancop |
| Approval / Certification | Wind load certified |
| ETIM Class Code | EC003579 |

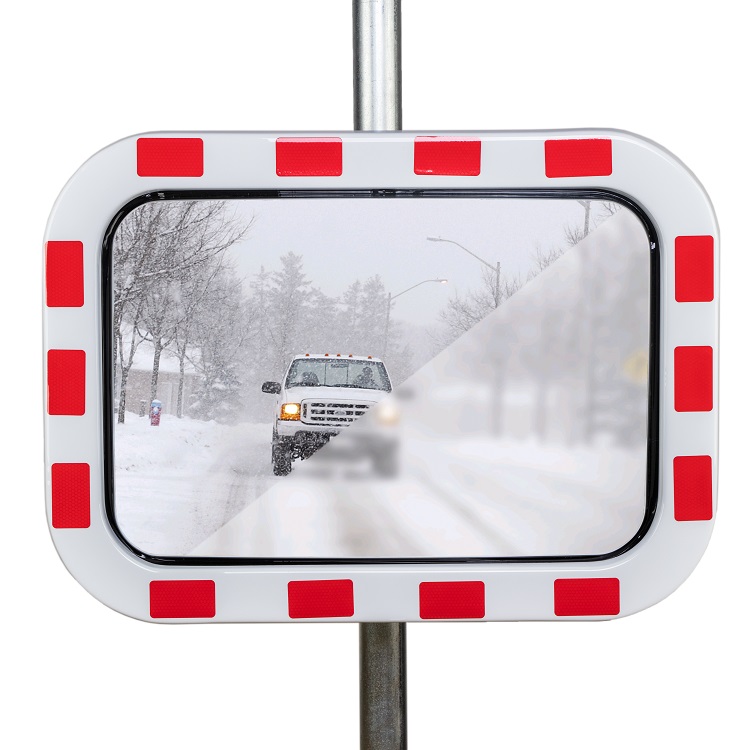

TM-H PC 40 X 60 - Polycarbonate mirror Rome 60x40cm with heating
Polycarbonate mirror Rome 60x40cm with heating
| Mirror plate (cm) | 40 x 60 |
| Observation distance (m) | 9-15 |
| Width (mm) | 760 |
| Height (mm) | 610 |
| Depth/Length (mm) | 20 |
| Material | Polycarbonate |
| Material surface |
|
| Frame material | high-impact Polystyrene (HIPS) |
| Frame colour | white |
| Warning mark | red warning mark |
| Area of application | indoor and outdoor use |
| Net weight (kg) | 6,3 |
| Gross weight (kg) | 8,3 |
| Mounting location |
|
| Mounting | screw together |
| Number of mounting holes | 4 |
| Fixing included | 4-point ball joint mounting Art.No.: 747.01-7 |
| Features | The heater is thermostat-controlled and switches the heating element on when the temperature is below 20 degrees. It is connected to the socket via a standard 220 volt cable and has a power consumption of ~55 W/m2. |
| Warranty | 5 years |
| Brand | Dancop |
| Approval / Certification | Wind load certified |
| ETIM Class Code | EC003579 |
TM-H PC 60 X 80 - Polycarbonate mirror Rome 80x60cm with heating
Polycarbonate mirror Rome 80x60cm with heating
| Mirror plate (cm) | 60 x 80 |
| Observation distance (m) | 15-22 |
| Width (mm) | 850 |
| Height (mm) | 750 |
| Depth/Length (mm) | 30 |
| Material | Polycarbonate |
| Material surface |
|
| Frame material | high-impact Polystyrene (HIPS) |
| Frame colour | white |
| Warning mark | red warning mark |
| Area of application | indoor and outdoor use |
| Net weight (kg) | 10 |
| Gross weight (kg) | 12 |
| Mounting location |
|
| Mounting | screw together |
| Number of mounting holes | 4 |
| Fixing included | 4-point ball joint mounting Art.No.: 747.02-5 |
| Features | The heater is thermostat-controlled and switches the heating element on when the temperature is below 20 degrees. It is connected to the socket via a standard 220 volt cable and has a power consumption of ~55 W/m2. |
| Warranty | 5 years |
| Brand | Dancop |
| Approval / Certification | Wind load certified |
| ETIM Class Code | EC003579 |

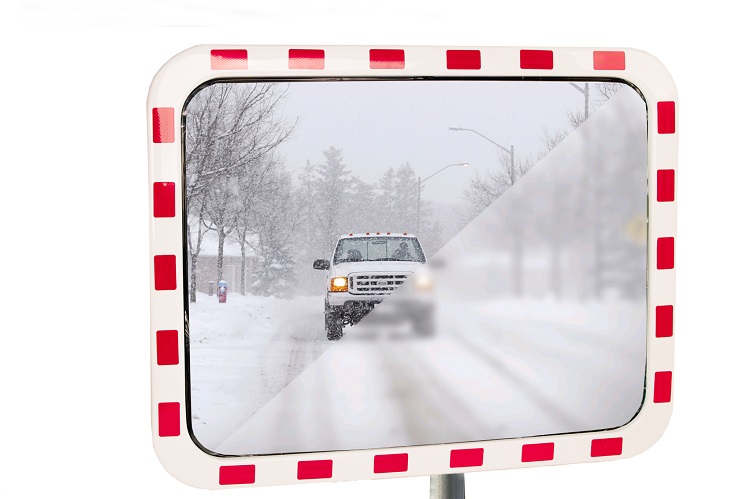

TM-H PC 80 X 100 - Polycarbonate mirror Rome 100x80cm with heating
Polycarbonate mirror Rome 100x80cm with heating
| Mirror plate (cm) | 80 x 100 |
| Observation distance (m) | 22-27 |
| Width (mm) | 1150 |
| Height (mm) | 960 |
| Depth/Length (mm) | 30 |
| Material | Polycarbonate |
| Material surface |
|
| Frame material | high-impact Polystyrene (HIPS) |
| Frame colour | white |
| Warning mark | red warning mark |
| Area of application | indoor and outdoor use |
| Net weight (kg) | 13,5 |
| Gross weight (kg) | 15,5 |
| Mounting location |
|
| Mounting | screw together |
| Number of mounting holes | 4 |
| Fixing included | 4-point ball joint mounting Art.No.: 747.03-4 |
| Features | The heater is thermostat-controlled and switches the heating element on when the temperature is below 20 degrees. It is connected to the socket via a standard 220 volt cable and has a power consumption of ~55 W/m2. |
| Warranty | 5 years |
| Brand | Dancop |
| Approval / Certification | Wind load certified |
| ETIM Class Code | EC003579 |
